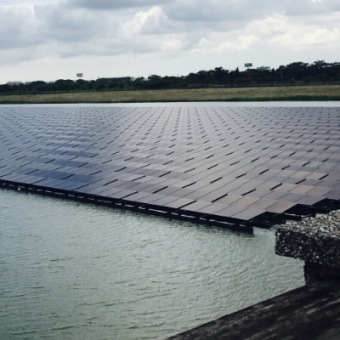

Floating mounting system is applied to solar PV power plant installation on water. Adopting HDPE material, it has passed the Hunt Water Absorption Test, Anti-Aging Test, Anti-UV Test, etc. Moreover, it can bear the pulling force that is much higher than other products. Adopting new module design in floater and main floater, it enables the array of double row in the same facing or in symmetrical facing and increases the efficiency of solar power generation and installation capacity. Moreover, it can be easily installed and saves the cost.

Flexible solar panel mounting system has the following advantages and successfully solves the disadvantages of traditional photovoltaic support systems, such as large lateral span and perishable rust by hanging, pulling and hanging the four large installation methods, and better improves the support mode of distributed photovoltaic power generation system.

Overview Ground screw pile is a new type of pile foundation material, which has incomparable superiority advantage compared with traditional ground pile. The patented design is screwed into the ground to replace the concrete independent foundation and strip foundation.

Overview Ground screw pile is a new type of pile foundation material, which has incomparable superiority advantage compared with traditional ground pile. The patented design is screwed into the ground to replace the concrete independent foundation and strip foundation. The top of ground screw pile is connected with the load.  The construction is not restricted by geological condition, construction efficiency, does not damage the environment, and it has more advantages of environmental protection. It can still be constructed even under severe cold weather conditions, It can facilitate migration and recycling. solar ground screw pile is not only a single product, but also includes a complete set of implementation solutions such as construction qualification, rich construction experience and management of technicians to ensure maximum service life.

Floating Solar Mounting System Overview The floating system on the water is suitable for water surface installation. The material is made of high-density polyethylene (HDPE) material, which meets the test standards of Hunt water absorption test (CN), anti-aging, anti-ultraviolet, etc., and can withstand tensile strength far exceeding similar products at home and abroad. The pontoon and the main floating body adopt a new model design, which realizes the arrangement of the same direction double row or symmetric double row, which increases the installed capacity and power, is simple and convenient to install, and reduces the project cost, and has a service life of 25 years. Parameter Item Illustration Installation Site Lakes, reservoirs, water surface Snow Load 1.0 KN/m2 Installation Direction Horizontal row, same direction double row, symmetric double row Installation Angle 10-15 degree Water Clearance 330-350mm Panel with frame/ frame-less Wind Load 50m/s Color Gray or custom Material HDPE Bearing Weight Main floating body 70kg/m2, aisle 155kg/m2 Modular design, easy to install and splicing. Increased floating body and stronger carrying capacity. The floating block is made of high-density polyethylene material, environmentally friendly and pollution-free, and has a long service life. Diversified arrangement, highly combinable. Achieve symmetric arrangement, reduce footprint, maximize installed capacity and power generation. High component compatibility and cost savings. Excellent weather resistance, easy operation and maintenance. Project Why Huge Energy Reliability Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years. Quality Control With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system. Quality Assurance Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer. We have a 15 year quality guarantee on Huge products. After-sales Service Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.  Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.

Solar Mounting Fence Overview Span: 2000mm or customized Height: 500-2000mm Mesh spacing:70x150mm or 100x100mm Surface treatments: Hot-dip galvanized/dip-coating Color: Silver/Green/White/Brown or Customized Parameter Project Why Huge Energy Reliability Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years. Quality Control With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system. Quality Assurance Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer. We have a 15 year quality guarantee on Huge products. After-sales Service Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.  Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.

Waterproof Structural Photovoltaic Canopy Overview HUGE photovoltaic canopy frame adopts AL6005-T5 material surface with anodized anti-corrosion and anti-rust overall beautiful atmosphere, strong sense of science and technology, effective in creating a cool and comfortable environment on the basis of ensuring sufficient light source to cover the rain and so on. For sun room, shed, landscape gallery, etc. Parameter   Perfect structure waterproof and safety Through structural optimization and overlapping of upper and lower photovoltaic tiles, rainwater flows down to ensure water resistance. Easy and quick installation Innovative component design, as well as bite and back mounting, perfectly meet the needs of simple and quick installation. Convenient maintenance Since the component photovoltaic module forms a waterproof surface on the roof, it is very easy to clean. If one of the components is damaged, it is not necessary to remove it all, and it can be replaced by a single piece. Project Why Huge Energy Reliability Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years. Quality Control With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system. Quality Assurance Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer. We have a 15 year quality guarantee on Huge products. After-sales Service Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.  Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.

Carport Solar Mounting System Overview 1. Material: AL6005-T5 with surface anodized treatment, corrosion resistance, hot galvanized steel Q235 2. Installation: Components pre-assembled before package, modules are easy to install together.It will save your labour cost and time. 3. Certificate: AS/NZS 1170.2-2011, SGS report and other international standards. 4. Warranty: 15 years warranty and 25 years product service life. Parameter Item Illustration Installation Site Flat Ground Snow Load Up to 2.5KN/m2 Wind Load Up to 60m/s Module Orientation Portrait or Landscape Installation Angle 0-20 degree Ground Clearance Around 2.5m Applicable Module Frame or Frameless Color Nature Project Why Huge Energy Reliability Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years. Quality Control With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system. Quality Assurance Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer. We have a 15 year quality guarantee on Huge products. After-sales Service Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.  Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
