Flexible Solar Panel Mounting System

Huge Energy Flexible Solar Mounting System has three major advantages: high clearance, large span and high safety. It effectively addresses the issues of land occupation, limited reuse, and high construction costs associated with traditional solar mounts. It can better assist the comprehensive reuse of land and promote the application and popularization of comprehensive "PV +" projects, such as agricultural PV, forest PV, fishery PV and pastoral PV.

  • Material:

    Steel Wire Rope
  • Wind Load:

    ≤ 60 m/s,Per Local codes
  • Snow Load:

    1.6KN/M²,Per Local codes
  • Service life:

    ≥ 25 Years
  • Warranty:

    15 Years
  • Installation Site:

    Sewage Treatment Plants or Coal Plants or Breeding Plants
  • Max. span:

    ≤50m
Inquiry now
Product Detail

Flexible Solar Panel Mounting System



Flexible Solar Panel Mounting System

Flexible Solar Mounting System

Huge Energy Flexible Solar Mounting System has three major advantages: high clearance, large span and high safety. It effectively addresses the issues of land occupation, limited reuse, and high construction costs associated with traditional solar mounts. It can better assist the comprehensive reuse of land and promote the application and popularization of comprehensive "PV +" projects, such as agricultural PV, forest PV, fishery PV and pastoral PV.


Large span
By applying pre-tension to the cables, the structure obtains initial stiffness, which can offset the load of the upper structure and achieve a large span by controlling the cable force and the overall deformation of the structure.


High clearance
Flexible Solar Mounting System can adopt the scheme of raising columns to meet the clearance requirements of the site, such as water plants, factories, corridors and other projects, the height can be more than 10m.


Multiple spans, high capacity
According to the terrain conditions, it can be arranged in a continuous multi-span form, without disconnected in the middle, the array length is lengthened, and the site conditions are fully utilized to reasonably layout the structure to maximize land utilization.



Flexible Solar Panel Mounting System


PV Module Cable


Stabilizing Tie Rod
Load Bearing Cable

Wind-Resistant Cable

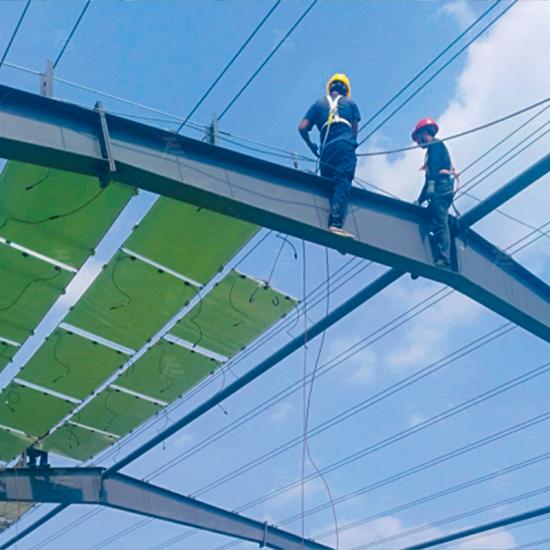

The two parallel module cables on the upper layer play the role in supporting and fixing the modules, using special connectors, the modules are installed through the sliding method, which effectively improves construction safety and shortens construction period.

The function of the stabilizing tie rod is to connect the module array into a whole, forming a spatial whole with the transverse connecting rope, thereby improving the overall spatial stiffness and overall stability, effectively resisting wind vibration, and ensuring the stable operation of the PV array.
A load-bearing cable on the lower layer is connected to the bottom of the stabilizing tie rod in the same direction as the module cable. Through the design of the tension stress of the load-bearing cable and the module cable, the disturbance of the module cable can be effectively controlled to improve the resistance to external loads such as wind/snow load.

The wind-resistant cable can reduce the amplitude of the module cable's oscillation in the wind, minimizing the impact of wind forces on the module cable. It effectively counteracts external loads caused by suction, decreases the cable's movement, and ensures the safety of the module cable.



Technical CHARACTERISTICS


Structural type Double-layer cable flexible bracket Module arrangement
Vertical/horizontal

Flexible Solar Panel Mounting System
Single span 10~60m Module type Compatible with all modules

Foundation form PHC/cast-in-place

Pile String form 1*n

Clearance height 0.5~10米
Module inclination 0°-25°
Wind load standard value 0.3~1.0kN/m² Normal use limit deflection 1/50L
Terrain adaptability Mountain, fish pond, tidal flat, etc Deflection under deadweight only 1/250L
Anti-corrosion coating Mg-Al-Zn, hot-dip galvanized Structural design service life 25 years
Material High-strength low-relaxation prestressed galvanized steel strand, anti-loosening anchor, Steel structure (Q235, Q355, Q420, Q460 or equal strength materials), etc.
Bearing capacity limit state Strictly meet the requirements of strength, stiffness and stability, cable force is less than 0.5 times the breaking force



Flexible Solar Panel Mounting System

Flexible Solar Panel Mounting System

Flexible Solar Panel Mounting System

Flexible Solar Panel Mounting System



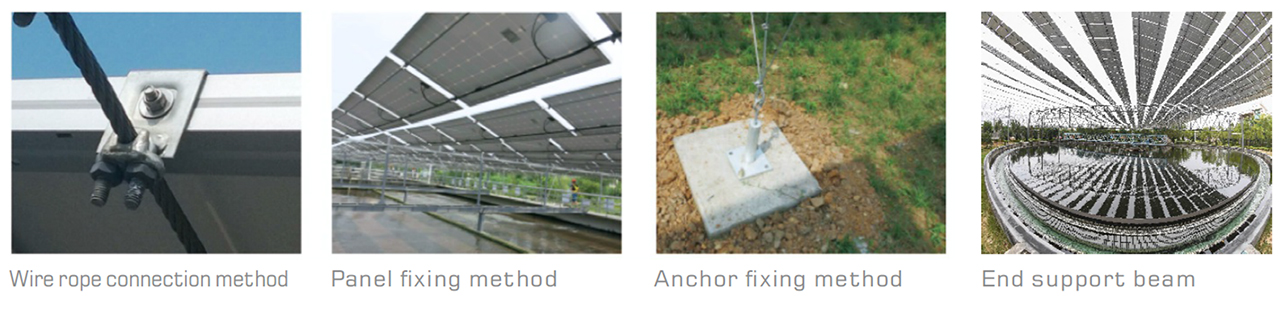

Product Features


Flexible Solar Panel Mounting System

Flexible Solar Panel Mounting System

Flexible Solar Panel Mounting System




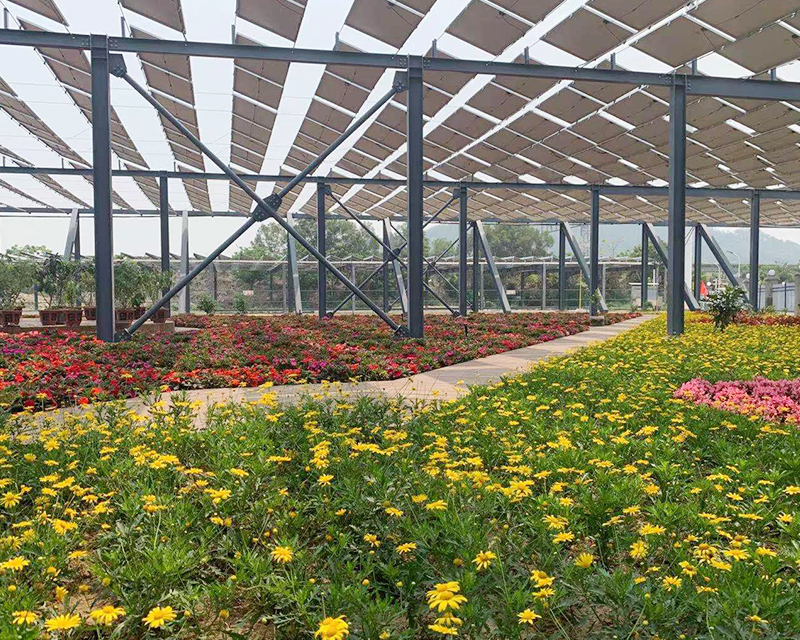

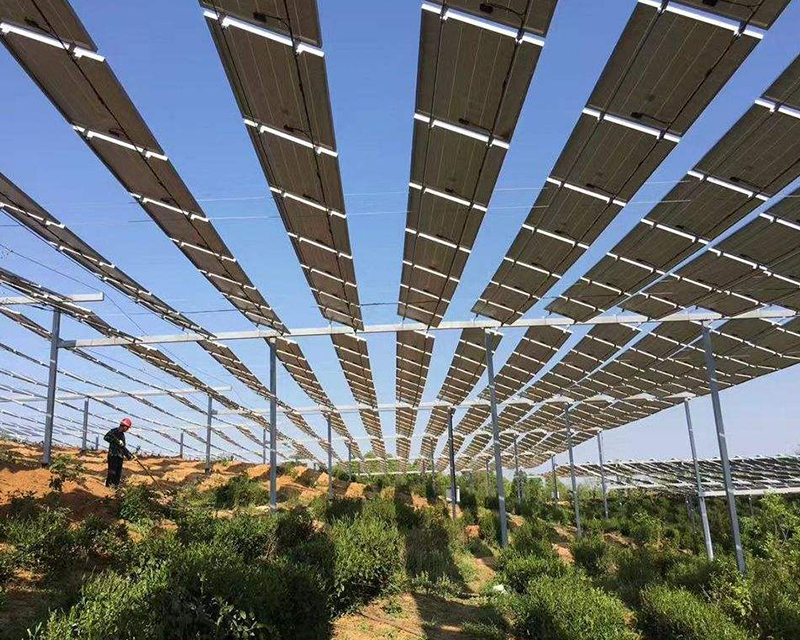

Project Case


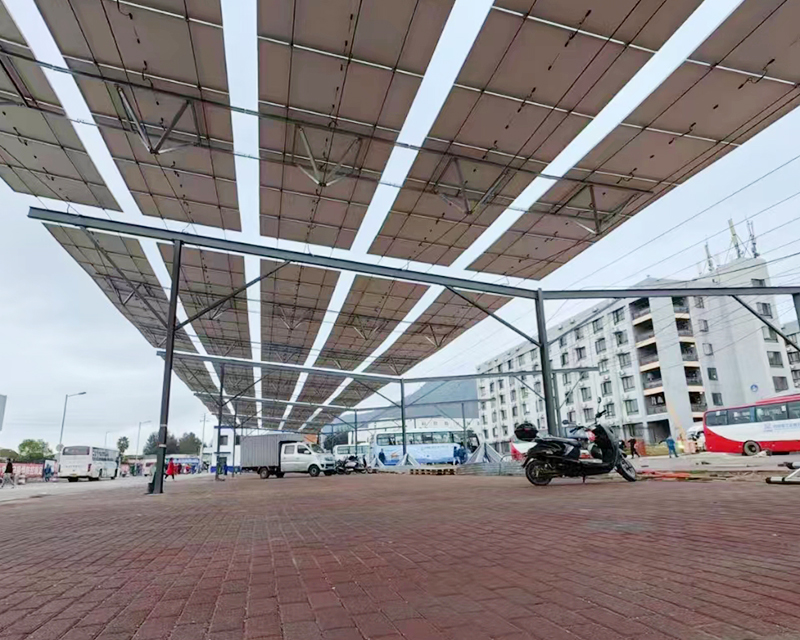

Flexible Solar Panel Mounting System

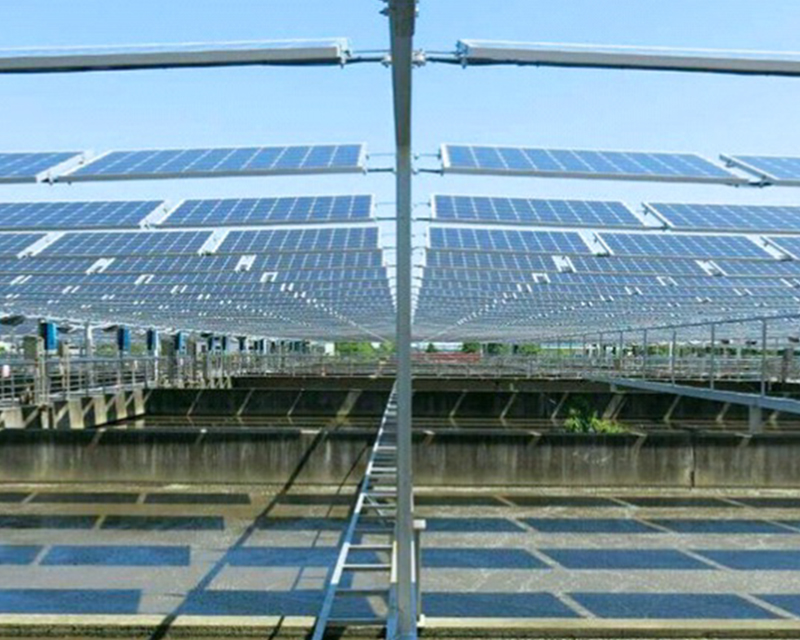

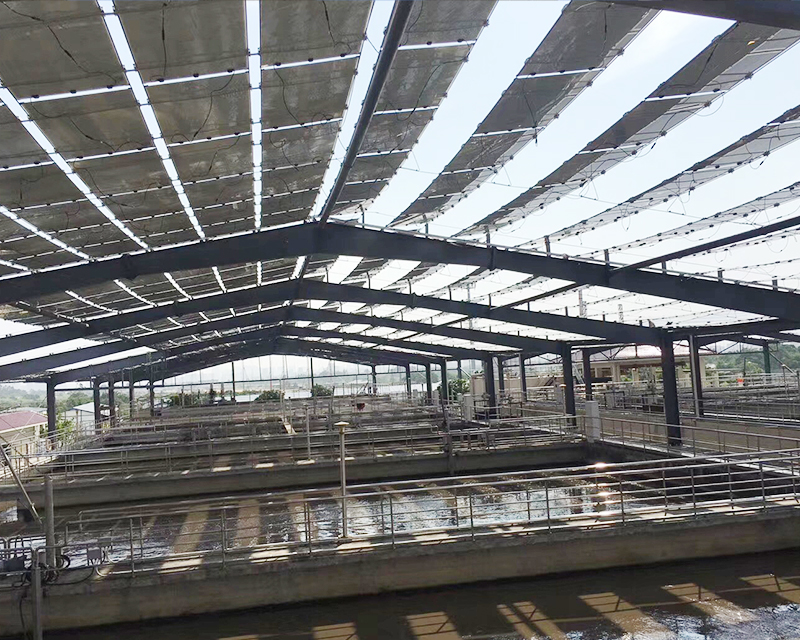

Project Type: Flexible Solar Mounting System Project          Project Location: Fuqing Waterworks Guanyinpu Water Plant
Project Capacity: 1MW



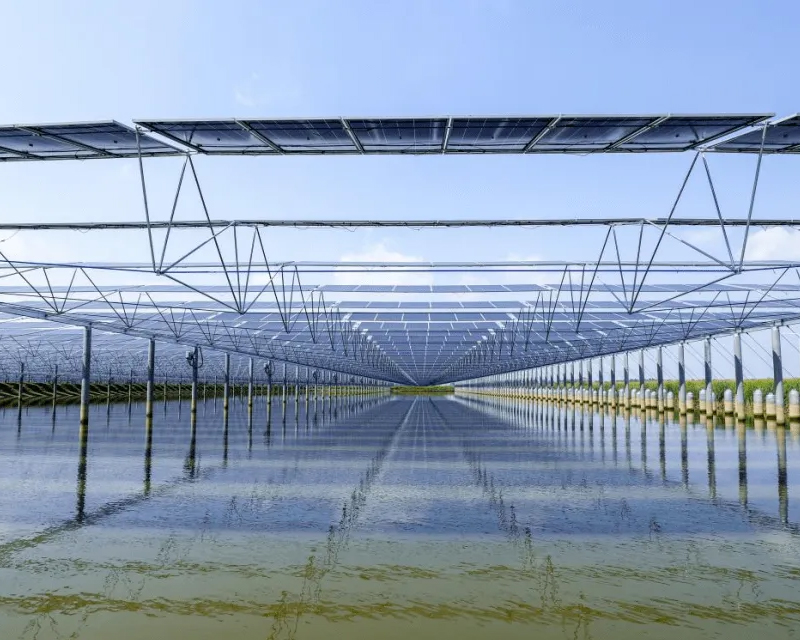

Flexible Solar Panel Mounting System

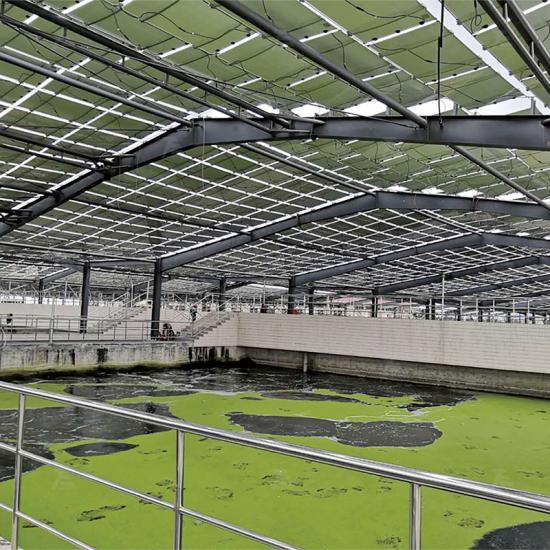

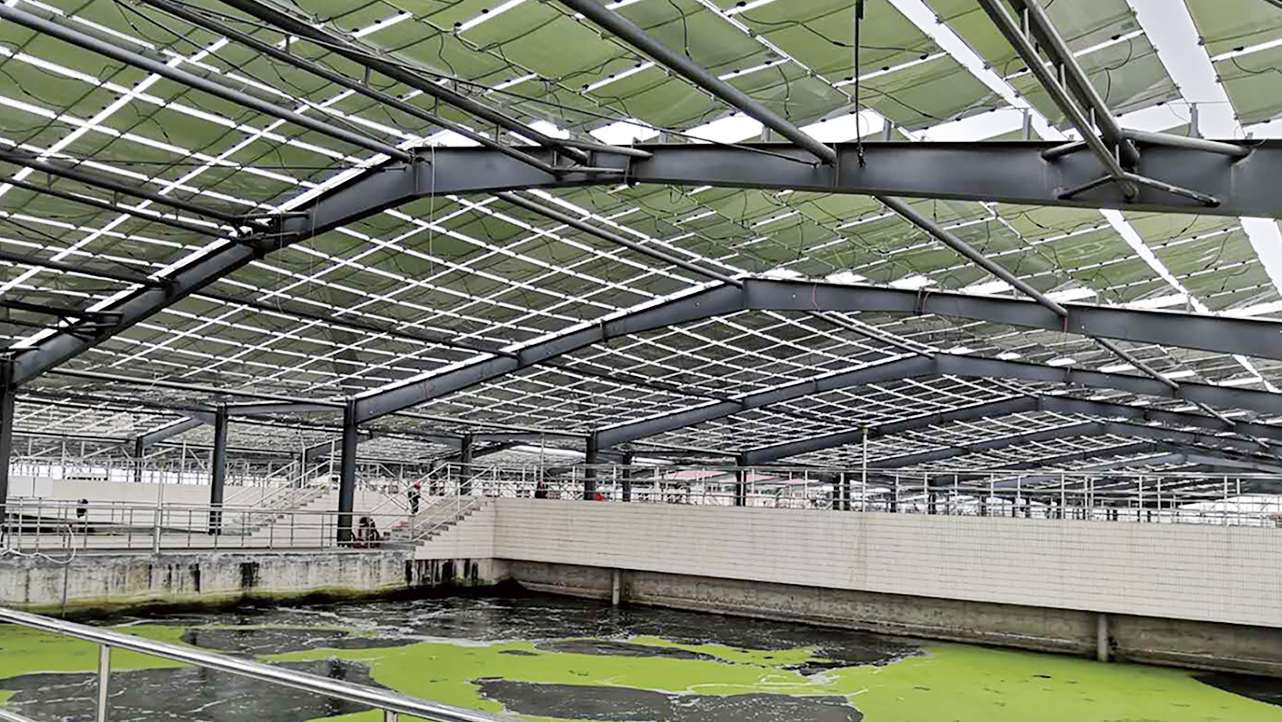

Project Type: Flexible Solar Mounting System Project        Project Location: Shantou Xinxi Sewage Plant
Project Capacity: 10MW


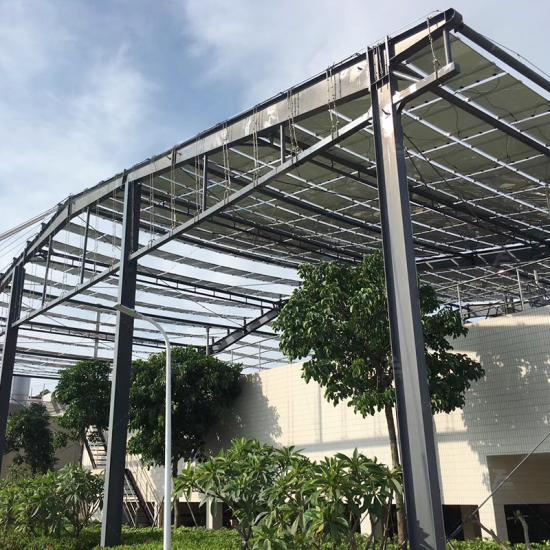

Flexible Solar Panel Mounting System


Project Type: Flexible Solar Mounting System Project          Project Location: Xiapu County Yuyangli Nuclear Power Construction Camp
Project Capacity: 1MW
