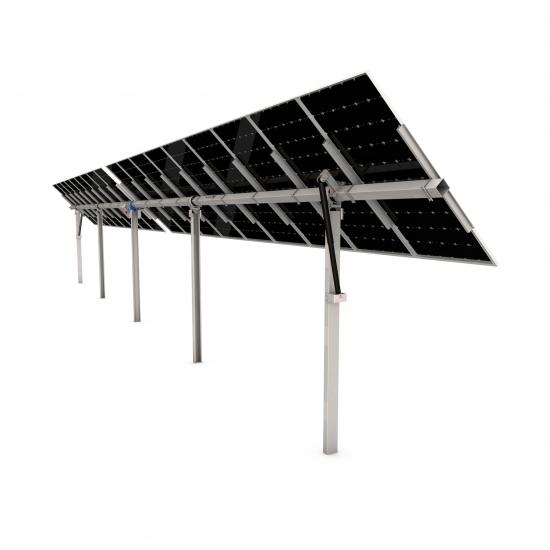

HST Horizontal Single-Axis Tracker

Solar tracking system is oriented north-south and tracks east-west. Powered by motors and guided by astronomical algorithms, it aligns the module with the sun's azimuth. This optimizes direct sunlight exposure on the PV module surface to enhance power generation.

  • Material:

    Q235 or Q355
  • Wind Load:

    ≤50m/s, Per Local Codes
  • Snow Load:

    2.4KN/M^2, Per Local Codes
  • Service life:

    ≥ 30 Years
  • Warranty:

    15 Years
Inquiry now
Product Detail


Solar Tracking System

Solar tracking system is oriented north-south and tracks east-west. Powered by motors and guided by astronomical algorithms, it aligns the module with the sun's azimuth. This optimizes direct sunlight exposure on the PV module surface to enhance power generation.



Material:Q235 or Q355

Small Components:AL6005-T5 ( Anodized )

Foundation Type:Driven Pile or Concrete

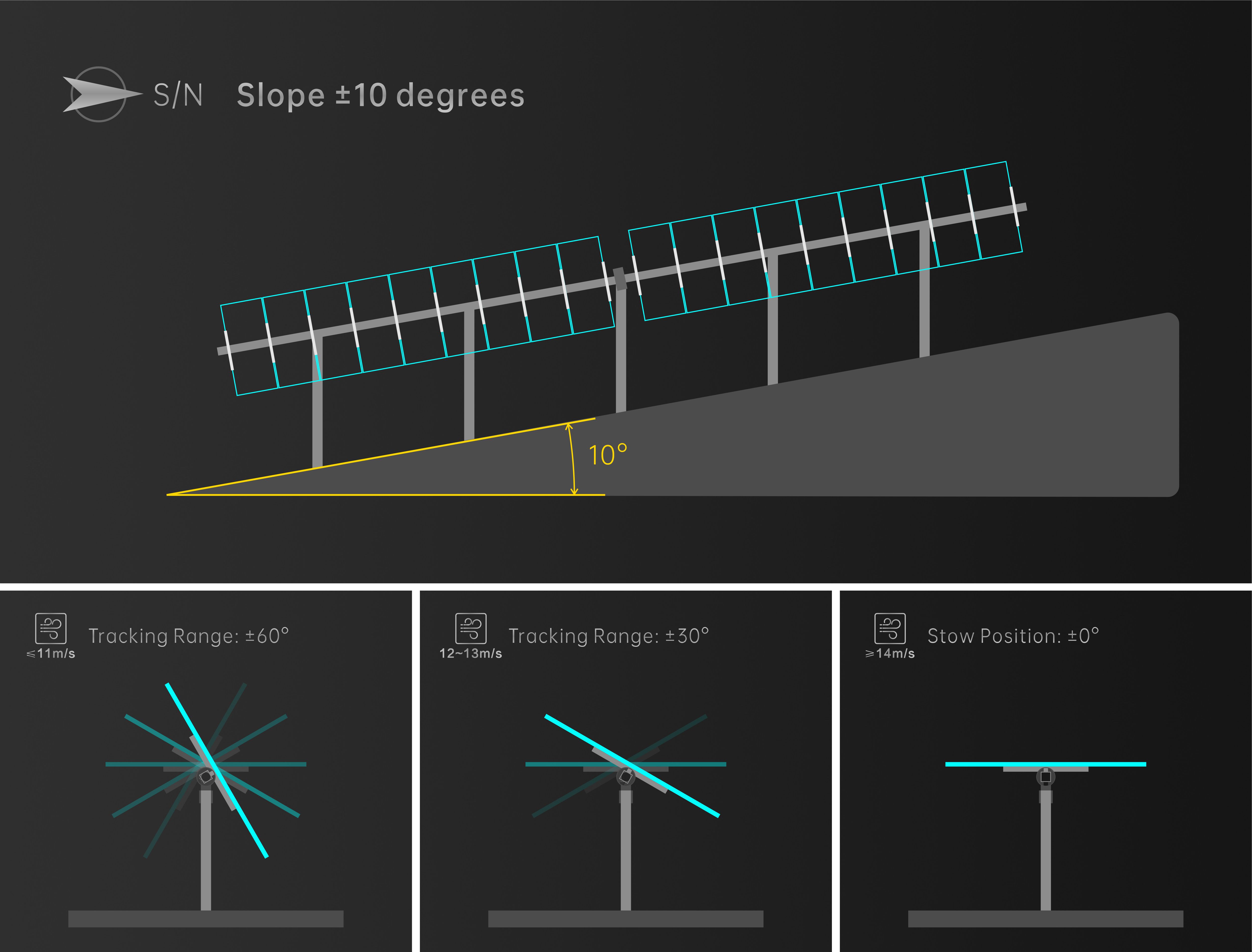

Tracking Range:±60°

Wind Load:≤50m/s, Per Local Codes

Snow Load:2.4KN/M^2, Per Local Codes

Operation Temperature:-40° ~ +70°

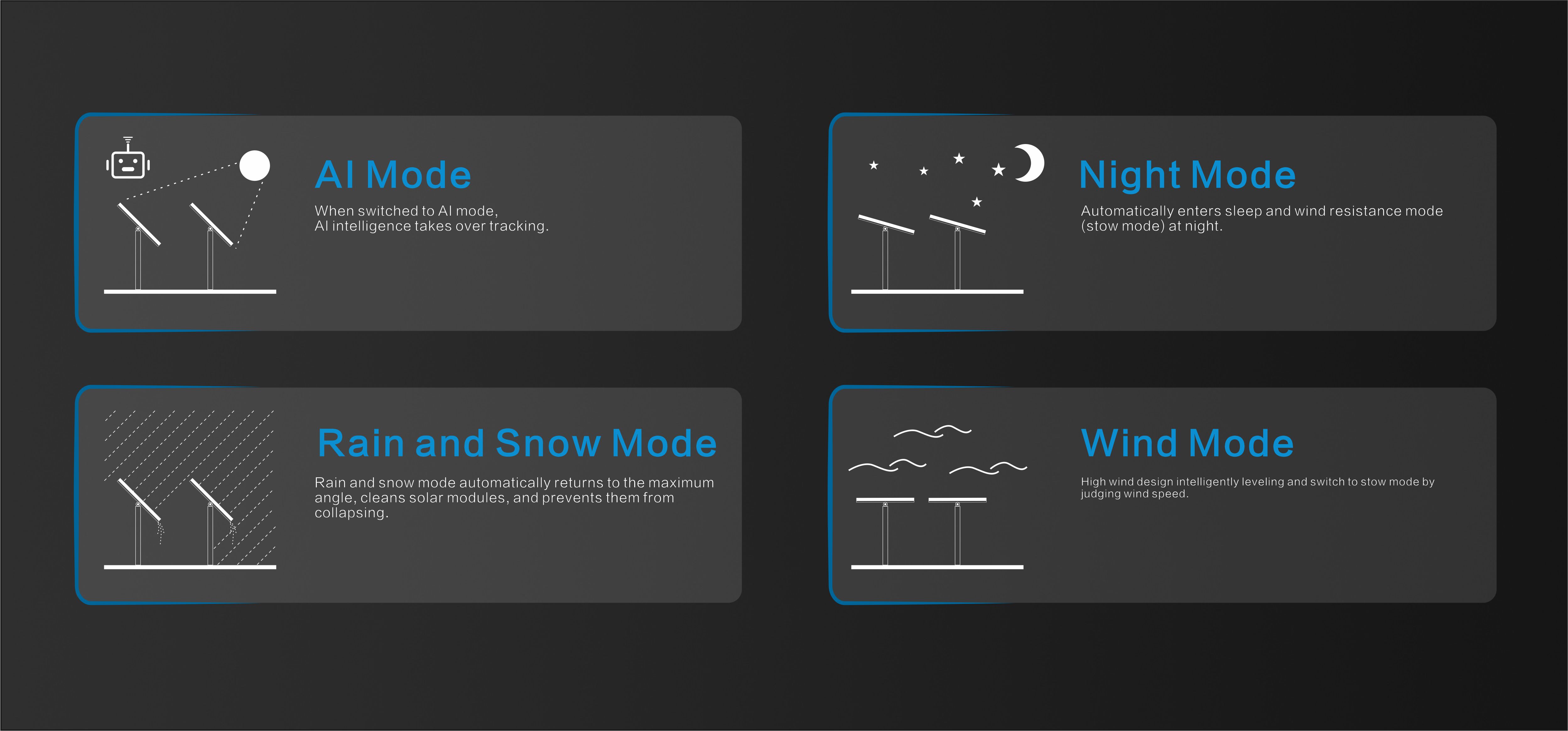

Wind Protection Mode:Stow Position When Wind Speed≥14m/s

IP Code:IP65

Compatible Modules:Most Commercially Available Modules, Adapt to Bifacial Modules

Bifacial Compatibility:Bifacial Configuration Available




Solar Tracker Upgrade

For More Intelligent Stable Tracking and Free of Maintenance

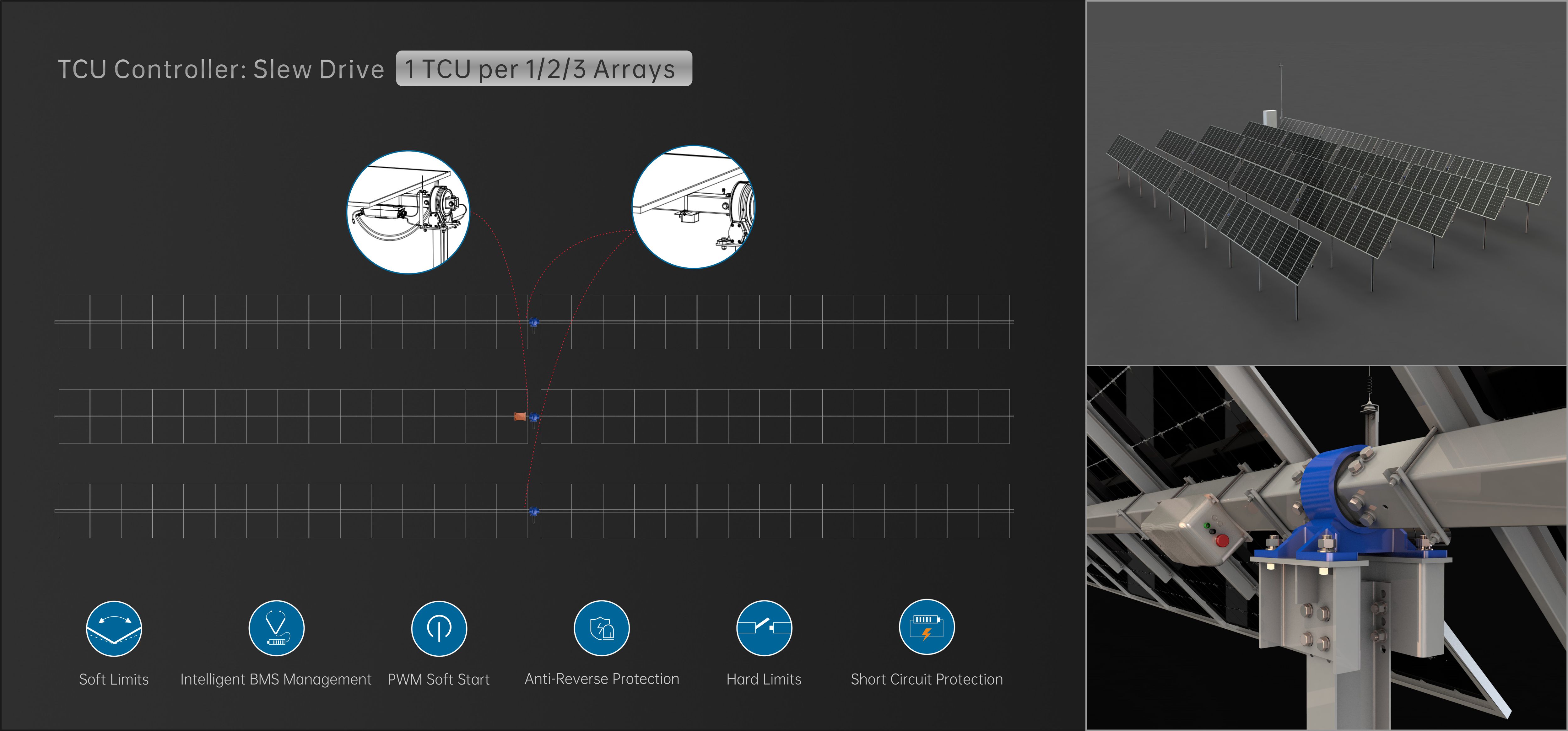

3rd Generation Controller (TCU)

25 Years Service Life Guarantee  Ruby Capacitance

- Moisture Resistance and Waterproof  Circuit Board Glue Dipping

Prevent Condensation Filter Membrane

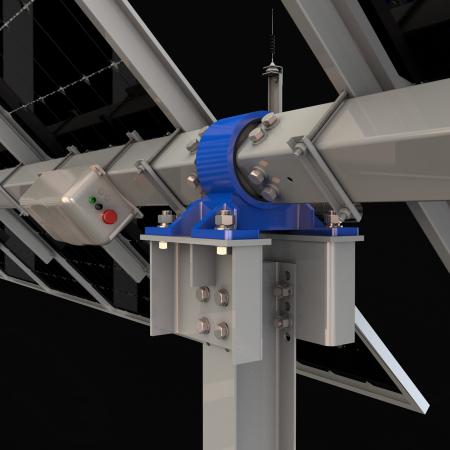

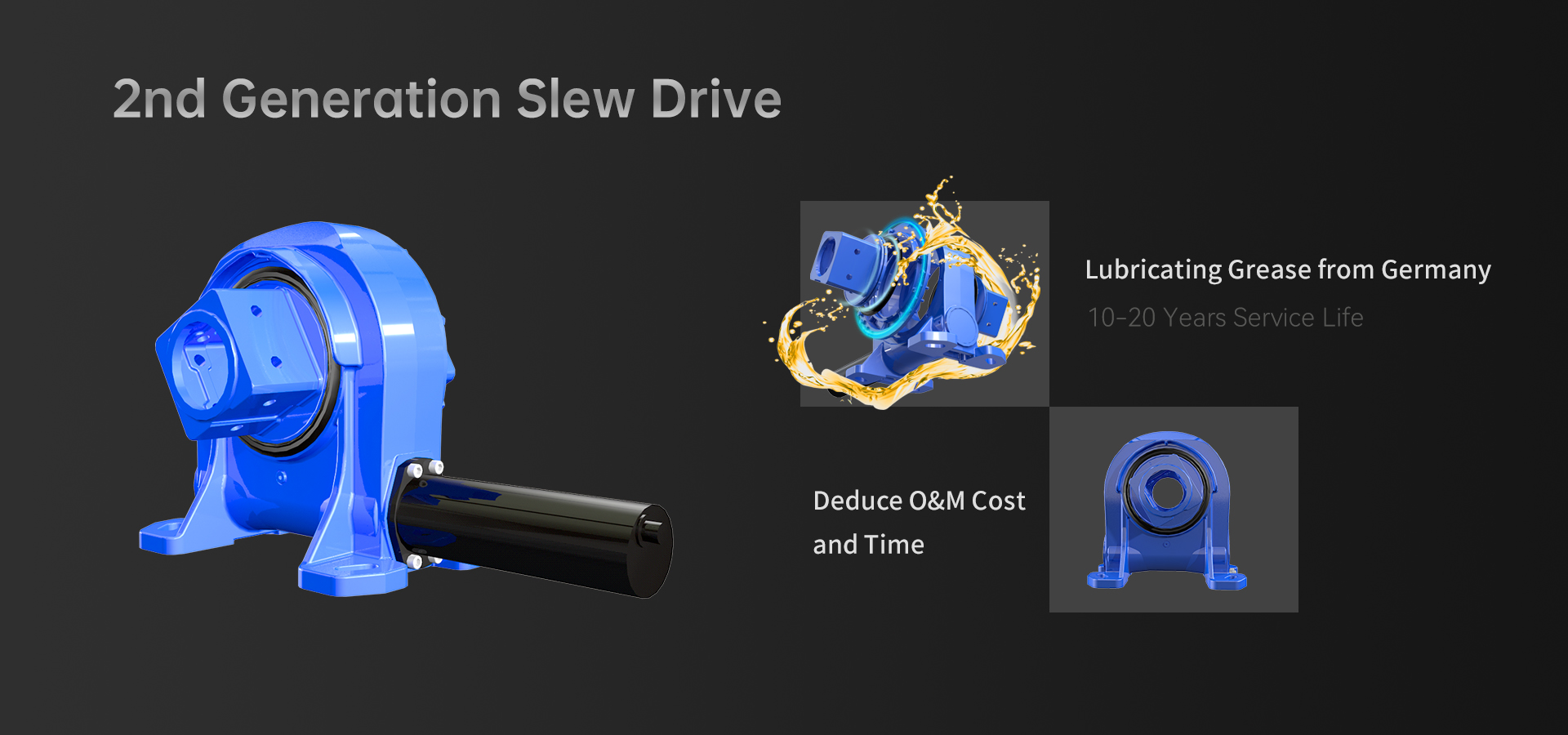

2nd Generation Slew Drive

Lubricating Grease from Germany  10-20 Years Service Life

- Deduce O&M Cost and Time




Advantages

- Irregular Site Adaptability
- Cost-Effective Construction
- High Power Density
- Torsional Divergence
- Flexible Layout
- High Stability and Reliability
- Easy Maintenance
- Wide Range of Applications
