Metal roof Solar panel bracket
加载中...

Standing Seam Metal Roof

  • Material:

    AL6005-T5 (Anodized)
  • Wind Load:

    Up to 60 m/s
  • Snow Load:

    2.4KN/㎡
  • Service life:

    25 Years
  • Warranty:

    12 Years
  • Roof Slope:

    Up to 45°
Inquiry now
Product Detail

The Metal Roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.

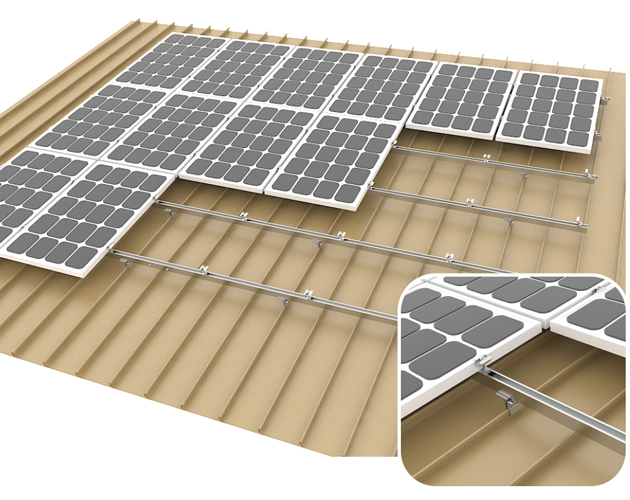

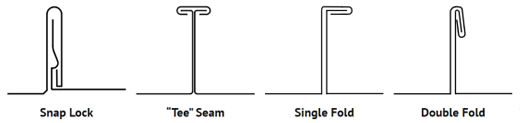

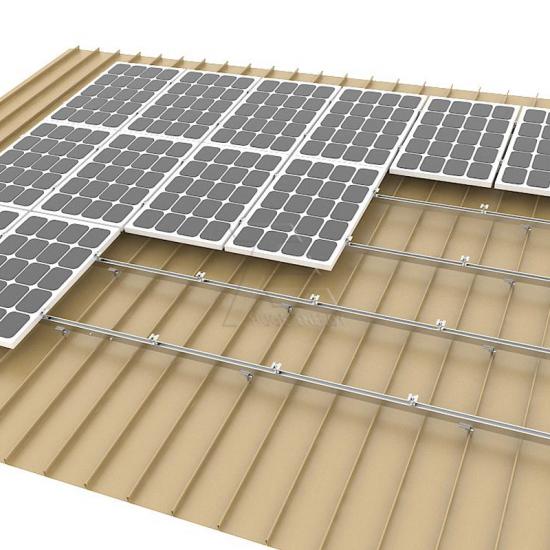

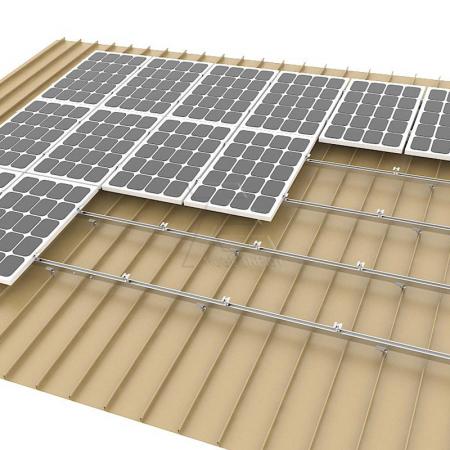

Standing Seam Roof Mount

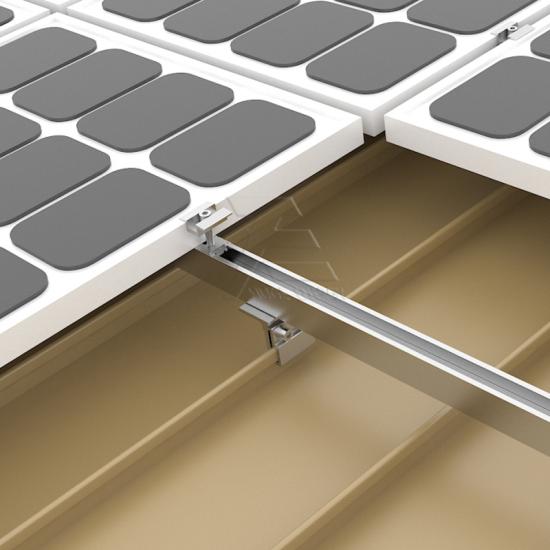

Standing seam clamps serve as a foundation of PV systems for non-penetrating metal roofs. Customization is also available.



Features

  • Simple and Fast Installation
  • Non-Penetrative Solution
  • Customizable

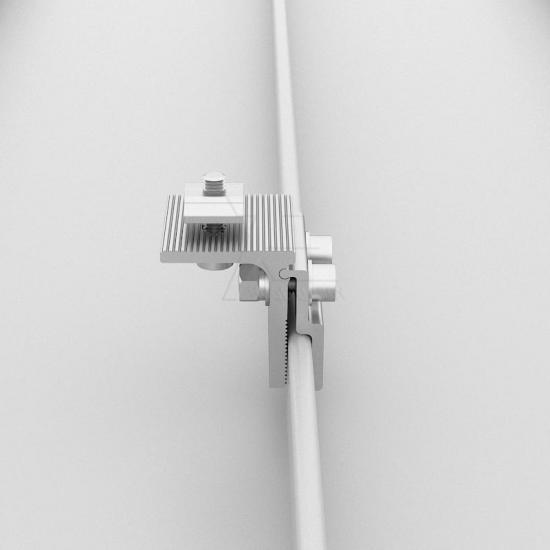

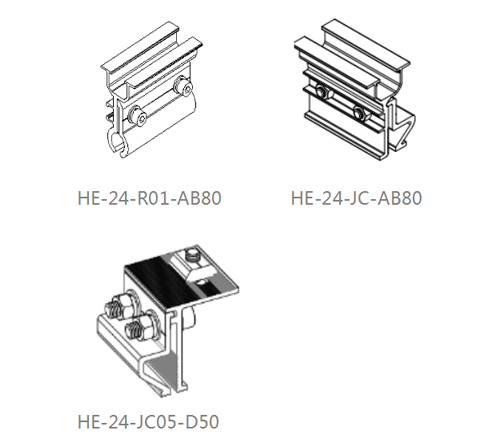

Standing Seam Clamp

HE-24-JC

Rail

11-R12

Rail Splice Kit

HE-15-R12

Mid Clamp Kit

HE-17-IC19XX

End Clamp Kit

HE-18-EC35XX

Grounding Clip

26-R12

Grounding Lug

HE-26-XJ20-D1




Bill of Materials and QTY for 1MW Project


        Standing Seam Roof Mount Series


No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm

1 Rail 5,880 Meters
4,835 Meters
4,352 Meters
2 Rail Splice Kit
1,146
894 746
3 End Clamp
1,154
902
754
4 Mid Clamp 5,158
4,024
3,358
5 Trapezoidal Clamp 7,452
6,260
5,596
6 Grounding Clip (Optional) 2,579
2,012
1,679
7 Grounding Lug (Optional) 572 446
372

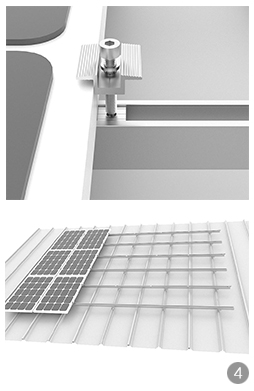

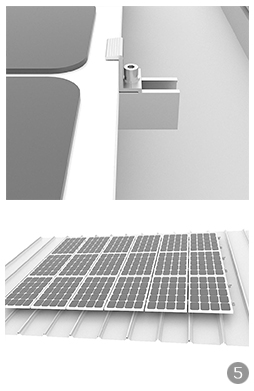

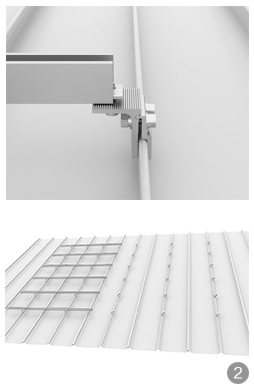

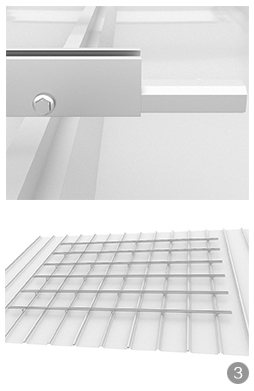

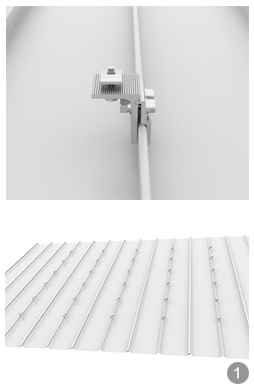

Installation Instructions

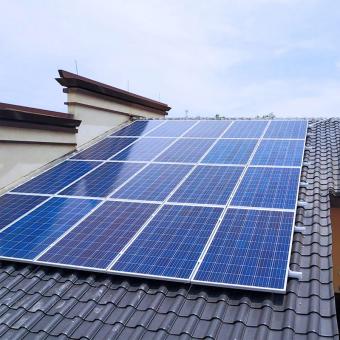

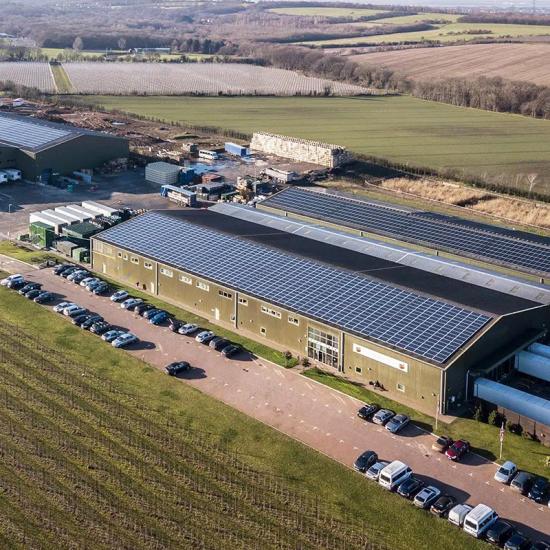

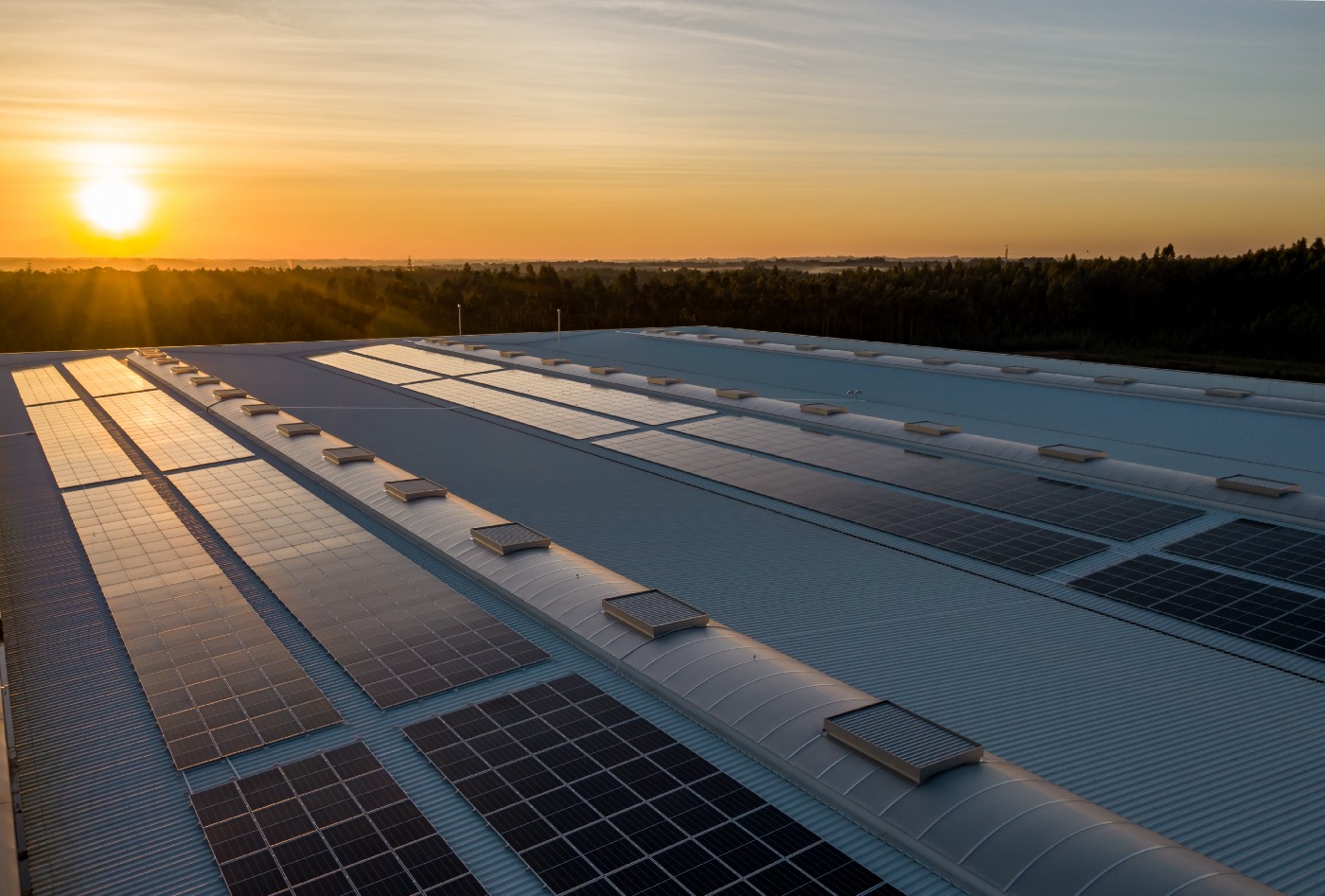

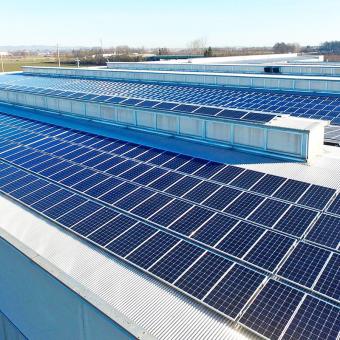

Project Case






Our Certificates



Huge Energy has obtained 48+ patents

certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.






AAA Enterprise Credit Evaluation
National High Tech Enterprise
High-quality Solar Mount Enterprises
Fujian Science and Technology Giant




Xiamen Specialized Small and Micro Enterprises
Xiamen Technology Giant
Leading Enterprise of Xiamen Science and Technology Giant
New Energy Innovative Enterprise


100% Owned Factories 8+



Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc.











Exhibition Show



The company actively participates in professional exhibitions at home and abroad

to strengthen the development of merchant resources,According to the market demand for technology research

and development and upgrade, expand the product market.





Team Activities



After decades of research and development, we have strong production strength and
long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our

long-term accumulation,join us and get better products.




14YRS+
10.8GW+
100,000M2
1500+
Corporate History Global Installation Production Base Number of Teams



A Free Consultation

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Tile roof solar mounting system supplier
Tile roof solar mounting system

The ceramic roof photovoltaic bracket generally uses the hook as the fixing member

Ceramic tile roof solar brackets manufacturer
Ceramic tile roof solar brackets

Overview Ceramic tile roof solar brackets offers perfection solution for installation on tile roofing, the key stainless steel roof hooks, is suitable for nearly all coverings, Systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable  for wide varieties of climatic zones.

Klip Lok Metal Roof Mount
Klip Lok Metal Roof Mount

The Metal roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.                                        Klip Lok Metal Roof Mount Klip-lok clamps serve as a foundation of PV systems for non-penetrating metal roofs. Customization is also available.  Features Simple and Fast Installation Non-Penetrative Solution Customizable Klip-Lok Clamp HE-24-JC Rail 11-R12 Rail Splice Kit HE-15-R6 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Trapezoidal Metal Roof Mount Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources,According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 14YRS+ 10.8GW+ 100,000M2 1500+ Corporate History Global Installation Production Base Number of Teams

Metal roof Solar panel bracket
Trapezoidal Metal Roof Solar Mount

The Metal Roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones. Trapezoidal Metal Roof Solar Mount Different types of clamps are offered to fasten different trapezoidal ribs. Customization is also available. Features Waterproof EPDM Rubber Intergration Cost-Effective and Fast Installation Customizable Trapezoidal Clamp HE-24-JC Rail 11-R02 Rail Splice Kit HE-15-R6 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Trapezoidal Metal Roof Mount Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources,According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 14YRS+ 10.8GW+ 100,000M2 1500+ Corporate History Global Installation Production Base Number of Teams

L Bracket and Hanger Bolt Kit
L Bracket and Hanger Bolt Kit

The Metal Roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones. L Bracket and Hanger Bolt Kit  L bracket kit and hanger bolt kit are applied in most corrugated or trapezoidal metal roofs. Features Wide Range of Selections Waterproof EPDM Rubber Intergration Pre-Assembled to Save Installation Time Hanger Bolt Kit   HE-24-LR-60 Rail 11-R2 Rail Splice Kit HE-15-R6 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Corrugated & Trapezoidal Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources,According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 14YRS+ 10.8GW+ 100,000M2 1500+ Corporate History Global Installation Production Base Number of Teams

Metal roof Solar panel bracket

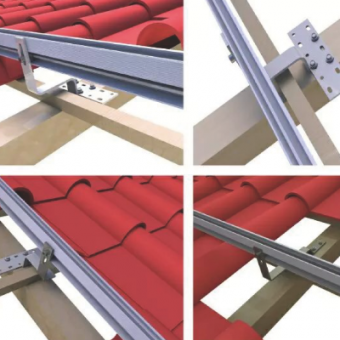

Tile Roof Solar Mount
