Trapezoidal Metal Roof Solar Mount

The ceramic roof photovoltaic bracket generally uses the hook as the fixing member

Overview Ceramic tile roof solar brackets offers perfection solution for installation on tile roofing, the key stainless steel roof hooks, is suitable for nearly all coverings, Systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable  for wide varieties of climatic zones.

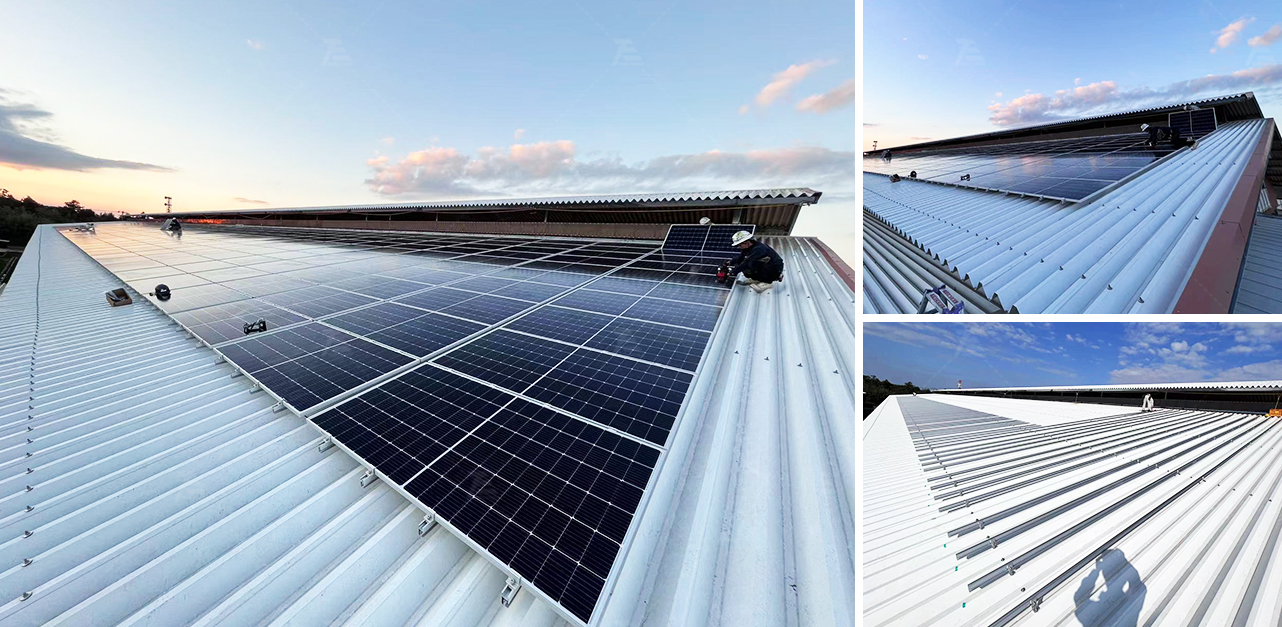

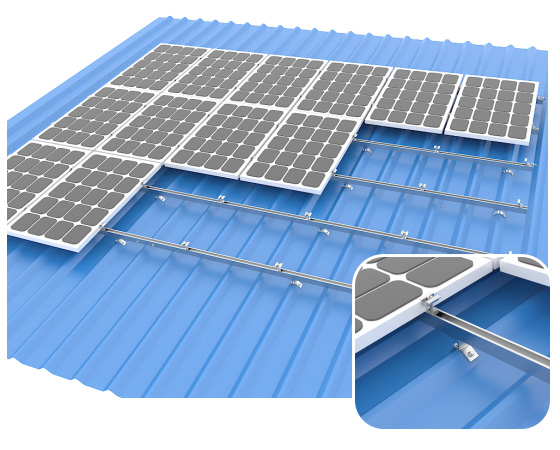

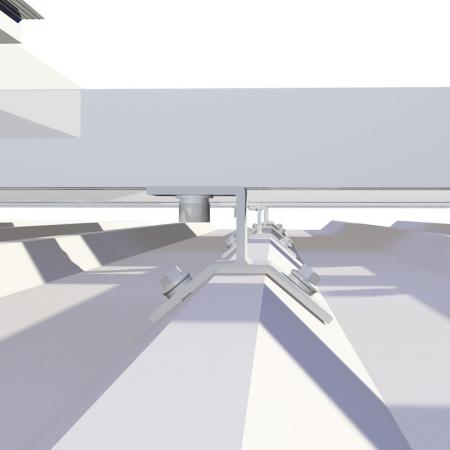

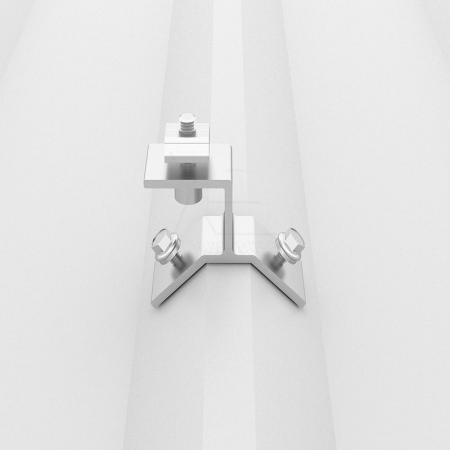

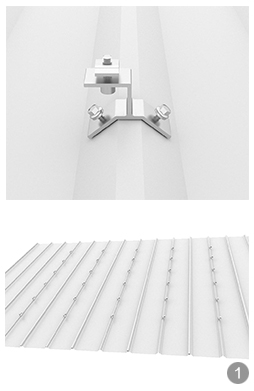

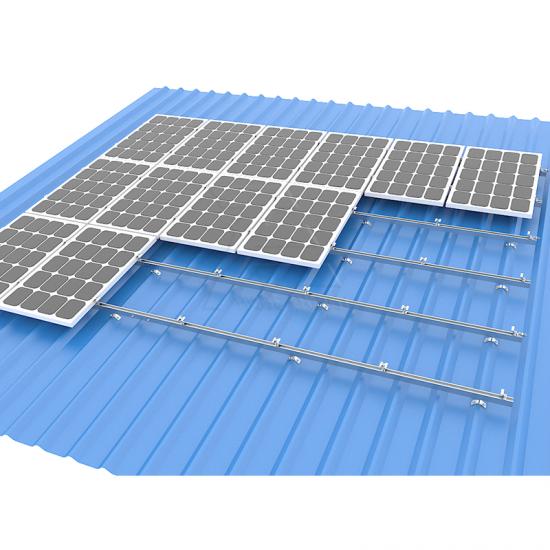

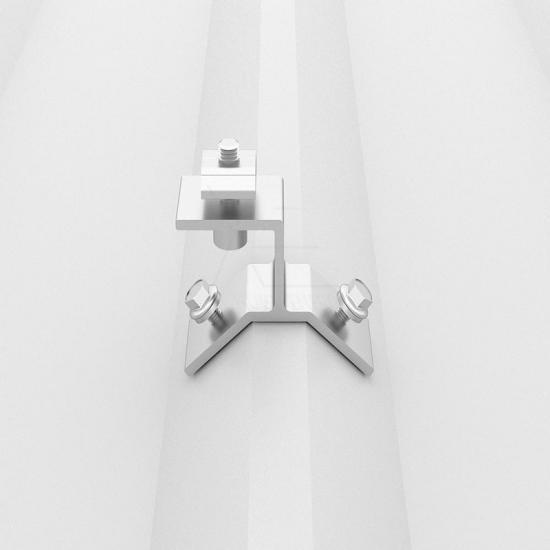

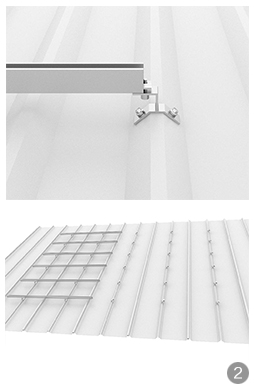

The Metal roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.                                        Klip Lok Metal Roof Mount Klip-lok clamps serve as a foundation of PV systems for non-penetrating metal roofs. Customization is also available.  Features Simple and Fast Installation Non-Penetrative Solution Customizable Klip-Lok Clamp HE-24-JC Rail 11-R12 Rail Splice Kit HE-15-R6 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Trapezoidal Metal Roof Mount Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources，According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 16YRS+ 15.4GW+ 100,000M2 900+ Corporate History Global Installation Production Base Number of Teams

The Metal Roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones. Standing Seam Roof Mount Standing seam clamps serve as a foundation of PV systems for non-penetrating metal roofs. Customization is also available.  Features Simple and Fast Installation Non-Penetrative Solution Customizable Standing Seam Clamp HE-24-JC  Rail 11-R12 Rail Splice Kit HE-15-R12 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Standing Seam Roof Mount Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources，According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 16YRS+ 15.4GW+ 100,000M2 900+ Corporate History Global Installation Production Base Number of Teams

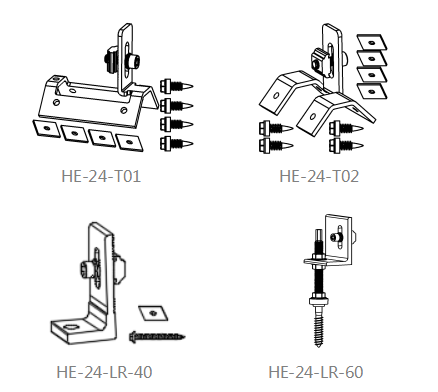

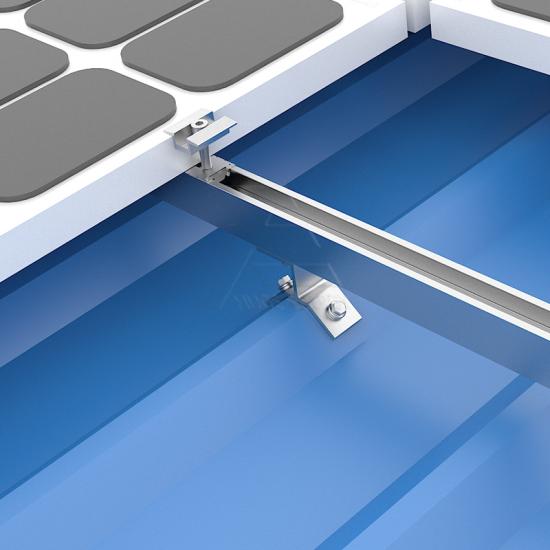

The Metal Roof Solar brackets is suitable for roofing with corrugated sheet metal, trapezoidal metal sheet. hanger bolt is available for foot option, making the installation more convenience, competitive and reliable. The systems are fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones. L Bracket and Hanger Bolt Kit  L bracket kit and hanger bolt kit are applied in most corrugated or trapezoidal metal roofs. Features Wide Range of Selections Waterproof EPDM Rubber Intergration Pre-Assembled to Save Installation Time Hanger Bolt Kit   HE-24-LR-60 Rail 11-R2 Rail Splice Kit HE-15-R6 Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project         Corrugated & Trapezoidal Series No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Trapezoidal Clamp 7,452 6,260 5,596 6 Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources，According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 16YRS+ 15.4GW+ 100,000M2 900+ Corporate History Global Installation Production Base Number of Teams

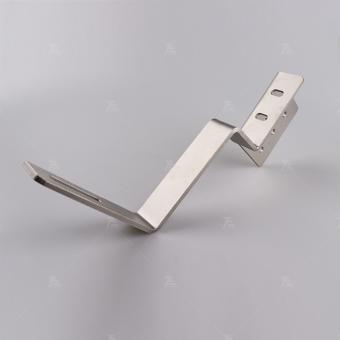

Tile roof solar mounting system offers perfection solution for installation on tile roofing, the key stainless steel roof hooks, is suitable for nearly all coverings, this include pantile, plain tiles, slate tiles. Systems are fully compliant with the international standards on wind & snow load, making it suitable for a wide variety of climatic zones. Tile Roof Solar Mount Roof hooks are applied to many different tiles such as pantile, Roman tile, slate, clay tile, etc. Adjustable hooks can be adjusted horizontally and vertically. Features Simple and Fast Installation Made of SUS 304 Stainless Steel No Drilling nor Welding on Rooftop Roof Hook Kit HE-24-W02 Rail 11-R12-L Rail Splice Kit  HE-15-R12-L  Mid Clamp Kit HE-17-IC19XX End Clamp Kit HE-18-EC35XX Grounding Clip 26-R12  Grounding Lug HE-26-XJ20-D1 Bill of Materials and QTY for 1MW Project  No. Product QTY 350W 1986*992*35mm QTY 450W 2108*1048*35mm QTY 540W 2279*1134*35mm 1 Rail 5,880 Meters 4,835 Meters 4,352 Meters 2 Rail Splice Kit 1,146 894 746 3 End Clamp 1,154 902 754 4 Mid Clamp 5,158 4,024 3,358 5 Roof Hook 7,452 6,260 5,596 6  Grounding Clip (Optional) 2,579 2,012 1,679 7 Grounding Lug (Optional) 572 446 372 Tile Roof Mount Series  24-W01 24-W02 24-W03-A 24-W03-B 24-W04 24-W05-A 24-W05-B 24-W06-B 24-W07 24-W08-B 24-W09 24-W10 24-W11 24-W12 24-W13A 24-W13B HE-24-W03 HE-24-W05 HE-24-W06 HE-24-W08 HE-24-W13 Installation Instructions Project Case Our Certificates                                        Huge Energy has obtained 48+ patents  certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.  AAA Enterprise Credit Evaluation  National High Tech Enterprise High-quality Solar Mount Enterprises Fujian Science and Technology Giant Xiamen Specialized Small and Micro Enterprises Xiamen Technology Giant Leading Enterprise of Xiamen Science and Technology Giant New Energy Innovative Enterprise 100% Owned Factories 8+                                                                 Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc. Exhibition Show                                             The company actively participates in professional exhibitions at home and abroad  to strengthen the development of merchant resources，According to the market demand for technology research  and development and upgrade, expand the product market. Team Activities                                     After decades of research and development, we have strong production strength and long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our  long-term accumulation,join us and get better products. 16YRS+ 15.4GW+ 100,000M2 900+ Corporate History Global Installation Production Base Number of Teams

which consists of zinc and 11% aluminum, 3% magnesium and microcrystalline silicon. With strong chlorine resistance (salt/sweat/seawater/sea breeze/soil) and alkali corrosion resistance, it can guarantee no red rust for 20-30 years

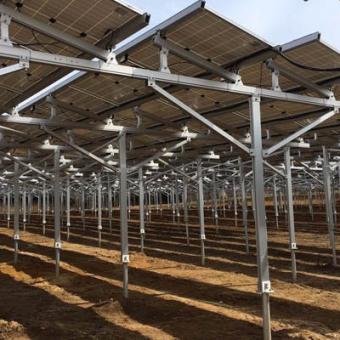

Zn-Al-Mg coated steel solar ground mounting system is made of zinc aluminum magnesium coated steel which is a new type of high corrosion resistant coating plate with long service life and stable structure, and can be used in various extreme environments.
