Solar Kit

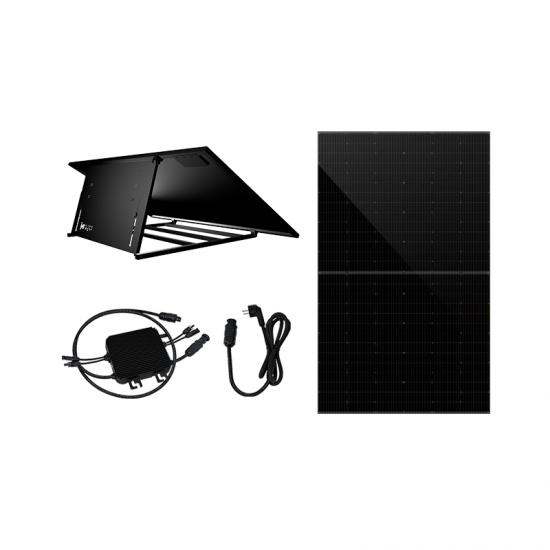

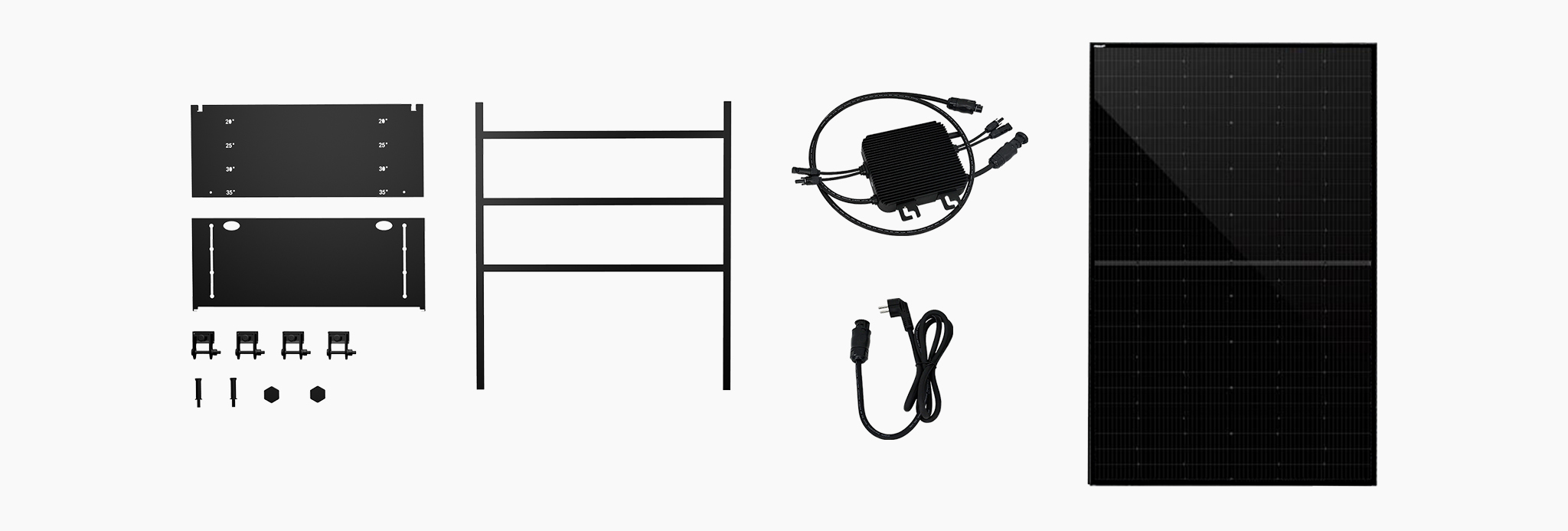

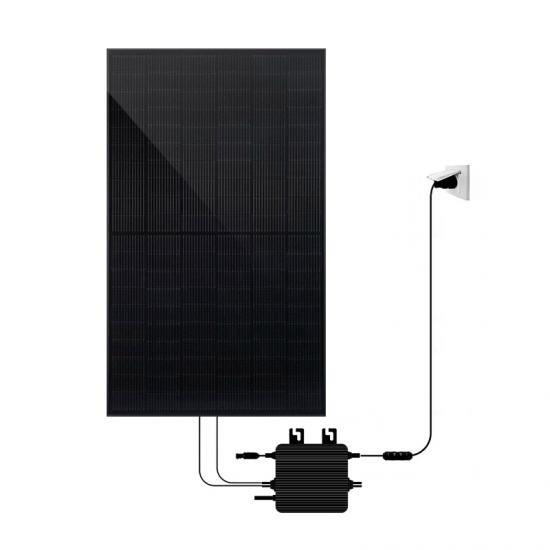

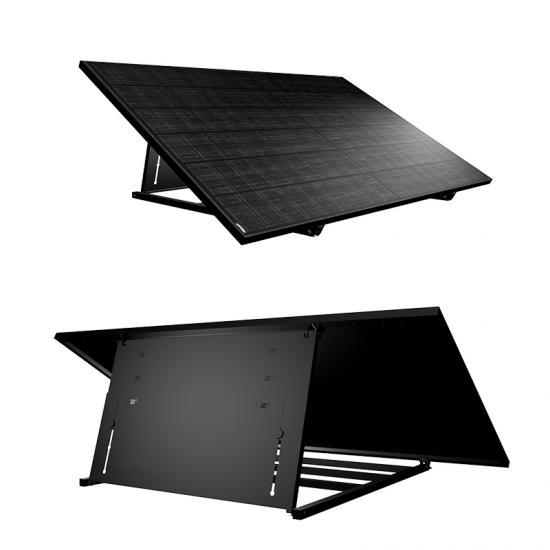

MAG Easy Solar Kit The One, a combination of solar panel, micro inverter and angle-adjustable bracket, breaks the pattern of traditional solar panel installation, enabling more energy, easier installations, lower costs and higher protection.

Inquiry now
Product Detail

Technical Data

Model No. HE-40-BSK400-PB/PS
DC Power Data
Module  Power(Pnom) 400
Module Efficiency 21.51%
Power Tolerance 0/±5W
Temp. Coef. (Power) -0.35%/℃
Quantity of modules 1
AC Electrical Data
Max. Continous Output Power (W) 400
Max. Output Current (A) 1.8A (50Hz) / 1.7A (60Hz)
Nominal Output Voltage (V)* 180-275
Nominal Frequency (Hz)* 50/60
Power Factor >0.99
Output Current Harmonic Distortion <3%
Certification
Solar Module CE, TUV, INMETRO, IEC
Microinverter CE-LVD, CE-EMC, VDE 4105, VDE 0126, EN 50549
Environmental Data
Environmental Protection Rating IP67
Operating Ambient Temperature Range -40 ℃ to 65 ℃
Relative Humidity 0-100%
Max. Operating Altitude Without Derating [m] 2000
Mechanical Data
Weight [kg] 29kg
Dimensions (W×H×D mm)** 1736*1158*100 mm
Packing Configuration 11 pcs kit / pallets, 26 pallets /40HQ
Warranty 12 years

*    The AC voltage and frequency range may vary depending on specific country grid.

**  Dimension and Weight of The One Solar Kit will be changed according to the solar module used.
