Tile Roof Solar Mount

  • Material:

    SUS 304 Stainless Steel
  • Wind Load:

    Up to 60 m/s
  • Snow Load:

    2.4KN/㎡
  • Service life:

    25 Years
  • Warranty:

    12 Years
  • Roof Slope:

    Up to 45°
Inquiry now
Product Detail

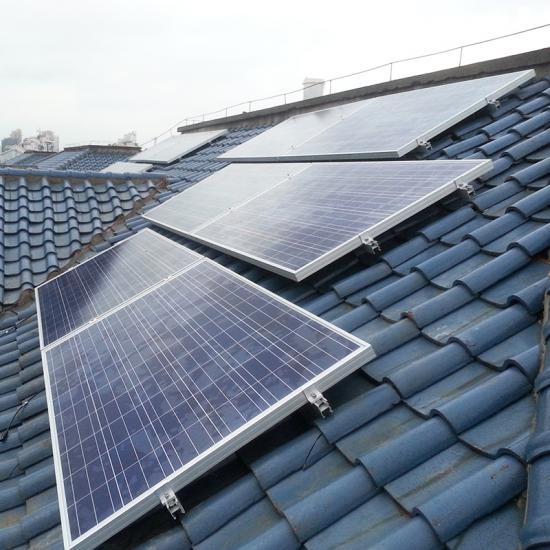

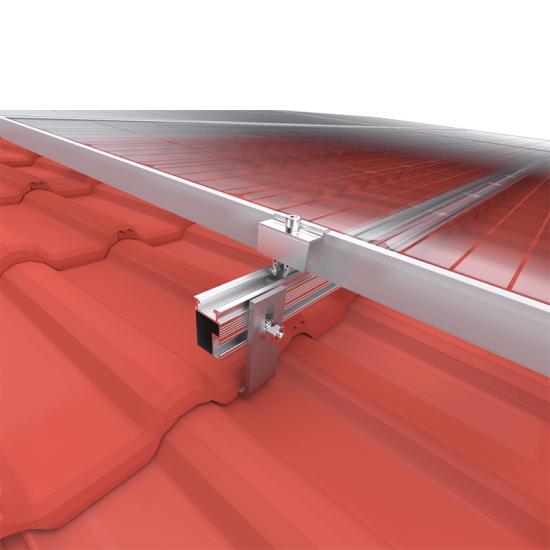

Tile roof solar mounting system offers perfection solution for installation on tile roofing, the key stainless steel roof hooks, is suitable for nearly all coverings, this include pantile, plain tiles, slate tiles. Systems are fully compliant with the international standards on wind & snow load, making it suitable for a wide variety of climatic zones.




Tile Roof Solar Mount

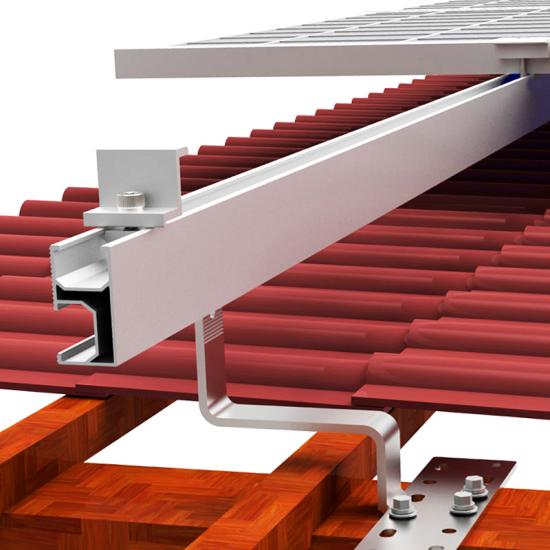

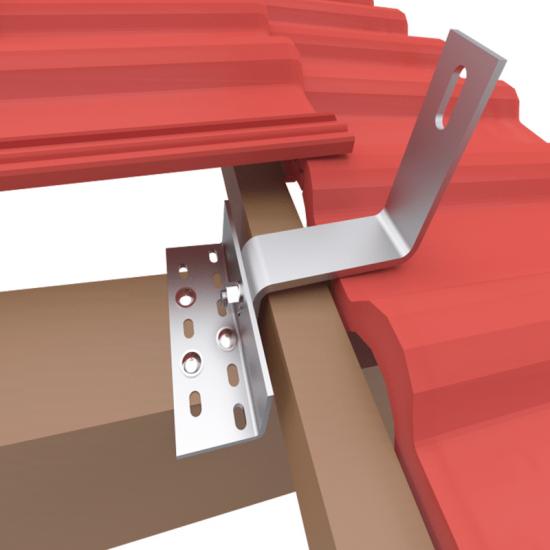

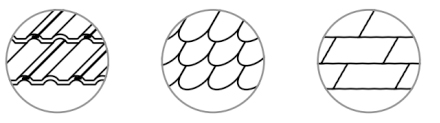

Roof hooks are applied to many different tiles such as pantile, Roman tile, slate, clay tile, etc. Adjustable hooks can be adjusted horizontally and vertically.



Features

  • Simple and Fast Installation
  • Made of SUS 304 Stainless Steel
  • No Drilling nor Welding on Rooftop











Roof Hook Kit

HE-24-W02

Rail

11-R12-L

Rail Splice Kit

 HE-15-R12-L

Mid Clamp Kit

HE-17-IC19XX

End Clamp Kit

HE-18-EC35XX

Grounding Clip

26-R12

Grounding Lug

HE-26-XJ20-D1
