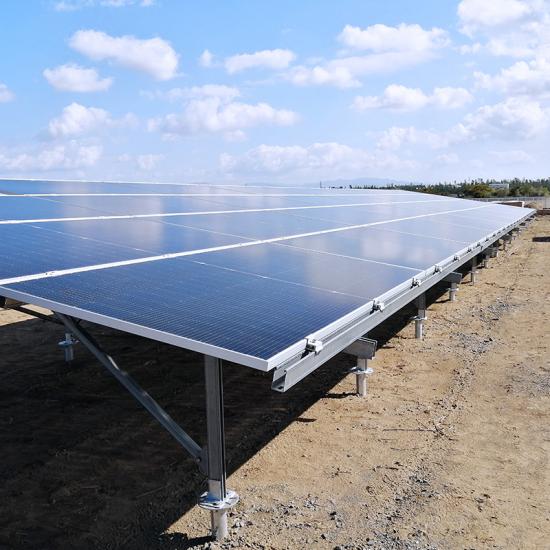

Zn-Al-Mg Coated Steel Solar Ground Mounting System

Zn-Al-Mg coated steel solar ground mounting system is made of zinc aluminum magnesium coated steel which is a new type of high corrosion resistant coating plate with long service life and stable structure, and can be used in various extreme environments.

  • Material:

    Q235 or Q355
  • Foundation Type:

    Deiven Pile,Ground Screw or Concrete
  • Wind Load:

    ≤ 60 m/s,Per Local codes
  • Snow Load:

    2.4KN/M²,Per Local codes
  • Module Type:

    Compatible with all modules
  • Service life:

    ≥ 30 Years
  • Warranty:

    20 Years
Inquiry now
Product Detail








Overview

Zn-Al-Mg coated steel solar ground mounting system is made of zinc aluminum magnesium coated steel which is a new type of high corrosion resistant coating plate with long service life and stable structure, and can be used in various extreme environments.






Advantages

  • Material features with high strength, superior corrosion resistance, self-repair, long lasting and easy processing
  • No need for post-coated or smeared, reducing the costs of rust-proof or paint repair on site
  • Conventional specification can be mass-produced to maximum control of production cycle

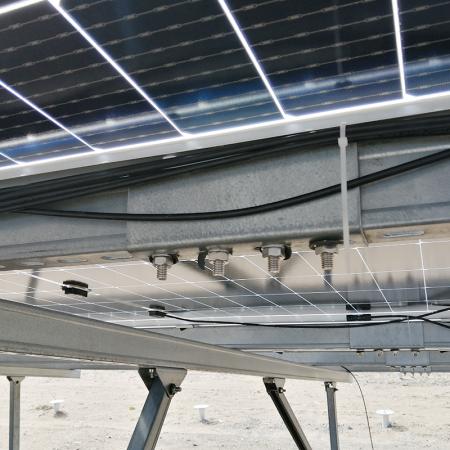

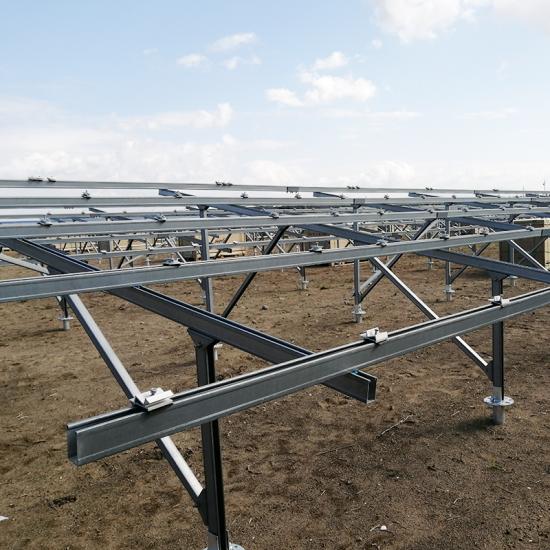

C Channel Steel Rail

Q235/Q355

Mid Clamp

AL6005-T5 / Q235

End Clamp

AL6005-T5 / Q235

Triangular Connector

Q235/Q355

Base

Q235/Q355

Rail Clamp

Q235

Rail Connector

Q235/Q355




Technical Parameter





Material
Q355



Design Standard
JIS C8955 2011, AS/NZS 1170.0, IEC62817, etc
Foundation Type
Driven Pile, Ground Screw or Concrete
Module Type
Compatible with all modules
Wind Load
≤60m/s, Per Local Codes
Snow Load
2.4KN/m2, Per Local Codes
Service Life
≥30 years
Warranty
20 years

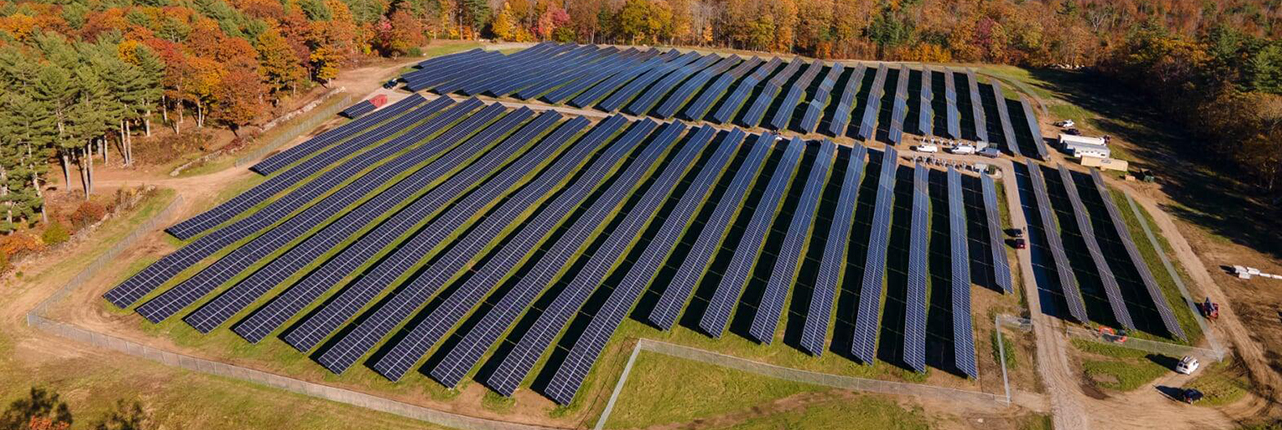

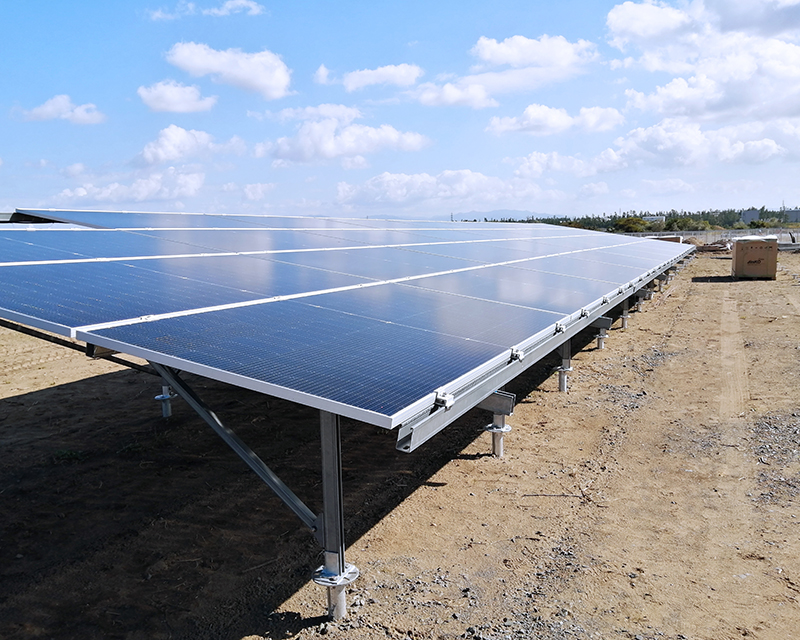

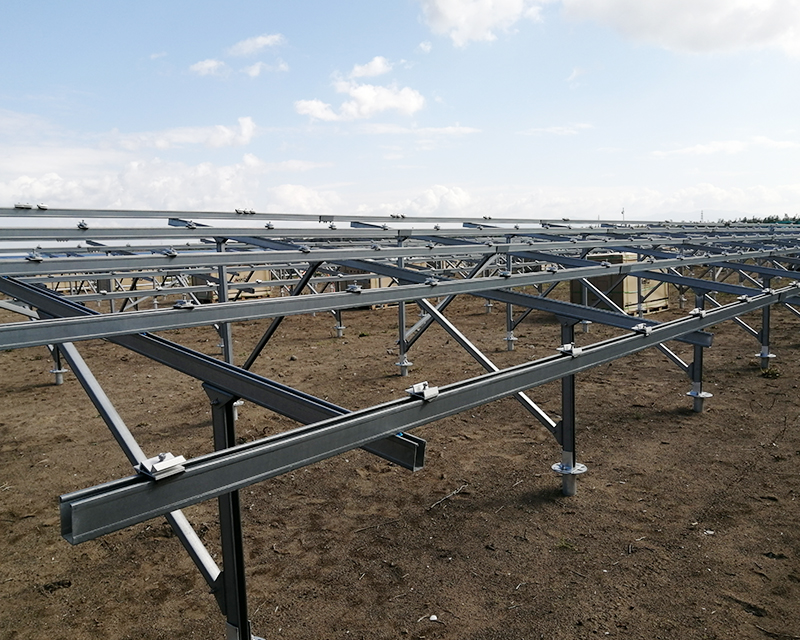

Project Case







Our Certificates



Huge Energy has obtained 48+ patents

certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.






AAA Enterprise Credit Evaluation
National High Tech Enterprise
High-quality Solar Mount Enterprises
Fujian Science and Technology Giant




Xiamen Specialized Small and Micro Enterprises
Xiamen Technology Giant
Leading Enterprise of Xiamen Science and Technology Giant
New Energy Innovative Enterprise

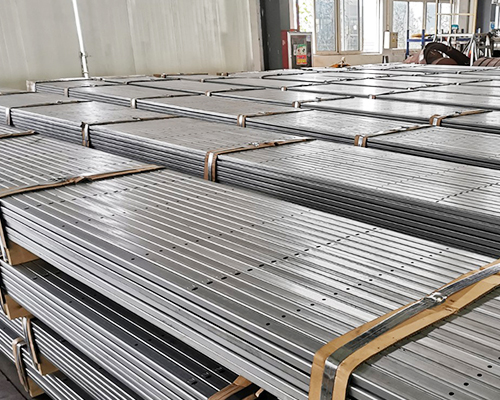

100% Owned Factories 8+



Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc.











Exhibition Show



The company actively participates in professional exhibitions at home and abroad

to strengthen the development of merchant resources,According to the market demand for technology research

and development and upgrade, expand the product market.





Team Activities



After decades of research and development, we have strong production strength and
long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our

long-term accumulation,join us and get better products.




16YRS+
15.4GW+
100,000M2
900+
Corporate History Global Installation Production Base Number of Teams



A Free Consultation

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
