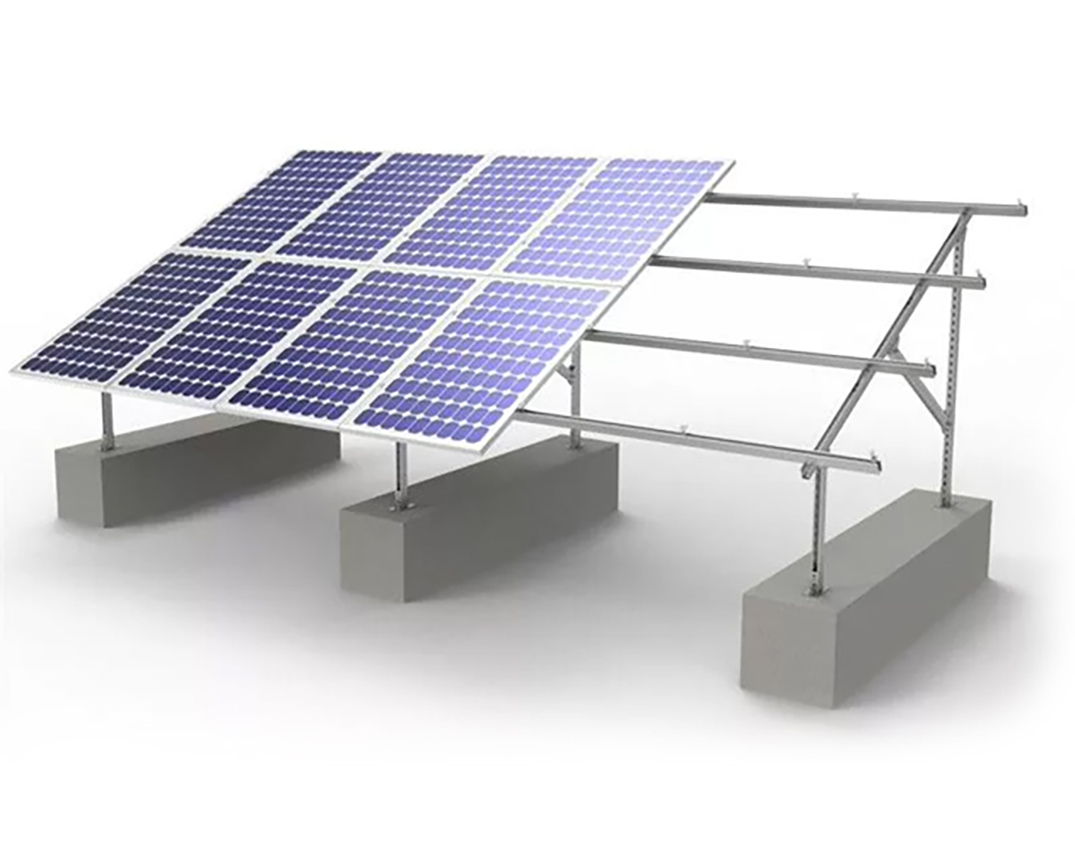

Hot-dip galvanized steel ground solar mounting system

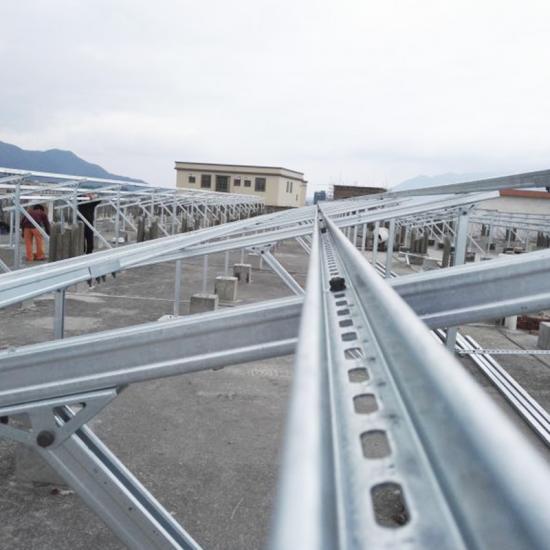

Hot-dip galvanized steel ground solar mounting system is mainly applied to ground photovoltaic power station and concrete flat roof photovoltaic power station. The system has features of strong adjustable capacity, huge structural strength and economical costs to meet customers’ requirements.

  • Material:

    Q235 or Q355
  • Foundation Type:

    Deiven Pile,Ground Screw or Concrete
  • Wind Load:

    ≤ 60 m/s,Per Local codes
  • Snow Load:

    2.4KN/M²,Per Local codes
  • Module Type:

    Compatible with all modules
  • Service life:

    ≥ 30 Years
  • Warranty:

    20 Years
  • Galvanized Thickness:

    70μm-100μm,Per Local codes
Inquiry now
Product Detail








Overview

Hot-dip galvanized steel ground solar mounting system is mainly applied to ground photovoltaic power station and concrete flat roof photovoltaic power station. The system has features of strong adjustable capacity, huge structural strength and economical costs to meet customers’ requirements.






Advantages

  • Heavy snow load or strong wind areas
  • Hot-dip galvanized thickness 70μm-100μm
  • Customizable design
  • Quick assembly

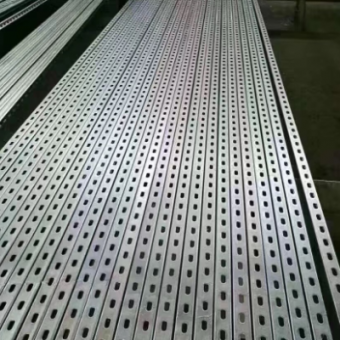

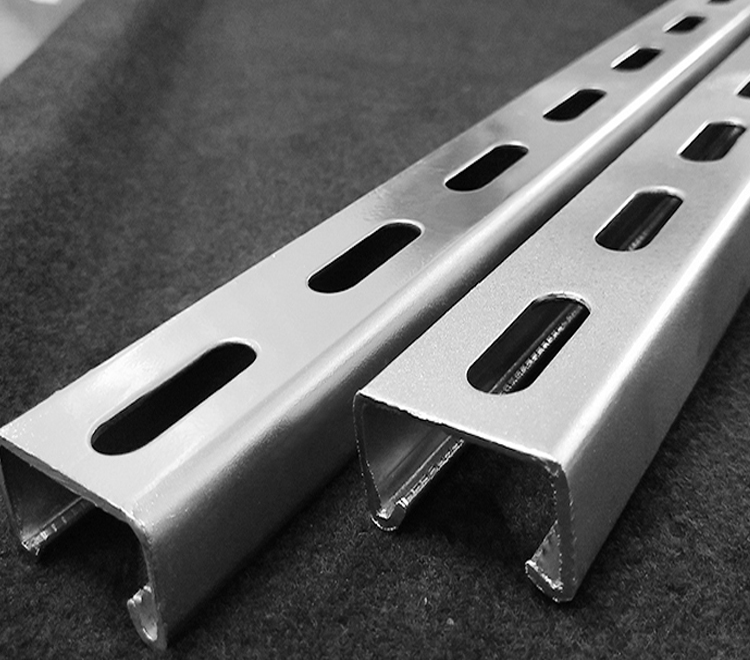

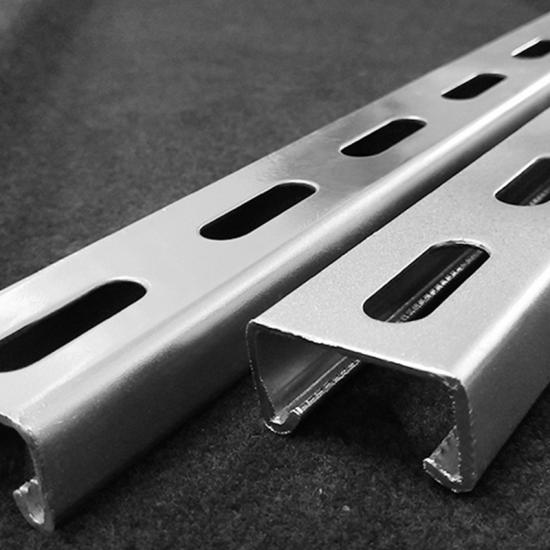

C Channel Steel Rail

Q235

Mid Clamp

AL6005-T5 / Q235

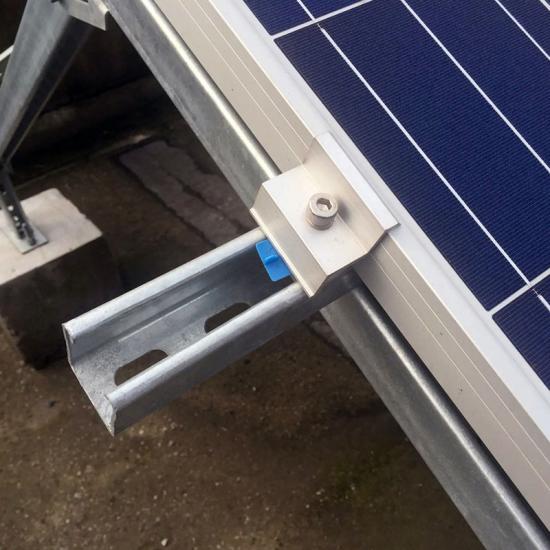

End Clamp

AL6005-T5 / Q235

Triangular Connector

Q235

Base

Q235

Rail Clamp

Q235

Rail Connector

Q235




Technical Parameter





Material
Q235 or Q355



Design Standard
JIS C8955 2011, AS/NZS 1170.0, IEC62817, etc
Foundation Type
Driven Pile, Ground Screw or Concrete
Galvanized Thickness
70μm -100μm, Per Local Codes
Wind Load
≤60m/s, Per Local Codes
Snow Load
2.4KN/m2, Per Local Codes
Service Life
≥30 years
Warranty
20 years




Installation Instructions


1

2

3

4

5

6

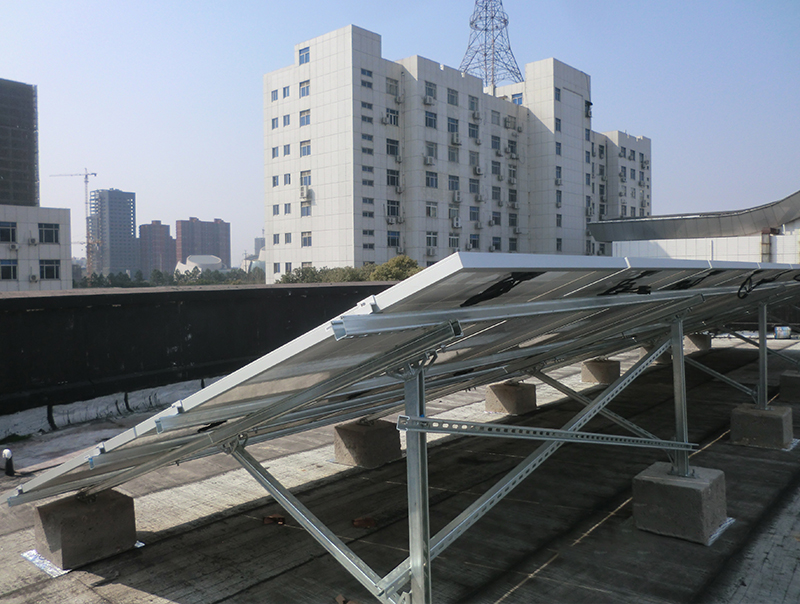

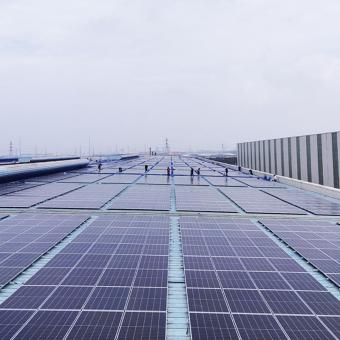

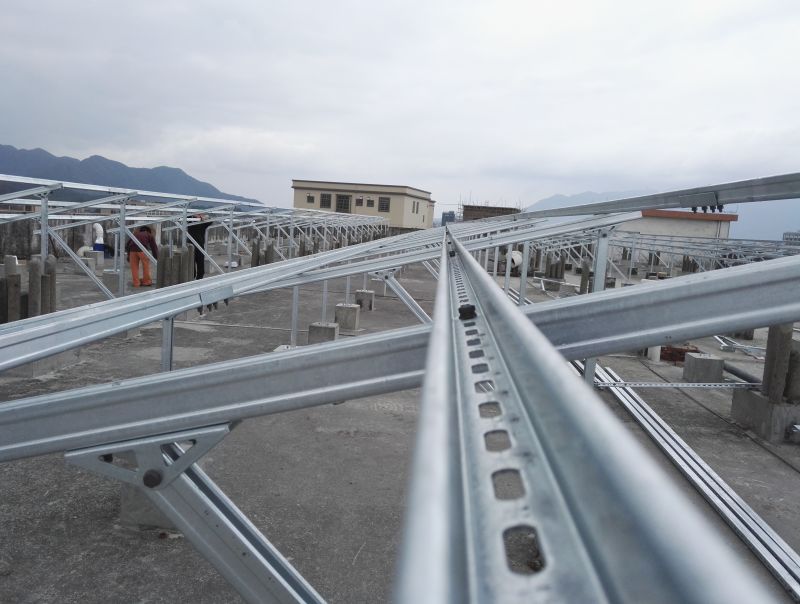

Project Case







Our Certificates



Huge Energy has obtained 48+ patents

certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.






AAA Enterprise Credit Evaluation
National High Tech Enterprise
High-quality Solar Mount Enterprises
Fujian Science and Technology Giant




Xiamen Specialized Small and Micro Enterprises
Xiamen Technology Giant
Leading Enterprise of Xiamen Science and Technology Giant
New Energy Innovative Enterprise


100% Owned Factories 8+



Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc.











Exhibition Show



The company actively participates in professional exhibitions at home and abroad

to strengthen the development of merchant resources,According to the market demand for technology research

and development and upgrade, expand the product market.





Team Activities



After decades of research and development, we have strong production strength and
long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our

long-term accumulation,join us and get better products.




14YRS+
10.8GW+
100,000M2
1500+
Corporate History Global Installation Production Base Number of Teams
