Aluminum ground solar mounting system
加载中...

Aluminum ground solar mounting system

Aluminum ground solar mounting system is a highly anti-corrosive and most aesthetic structure for ground mount installation. The AL6005-T5 supporting footing is delivered with pre-assembled design of the highest level in factory and simplifies construction site work to the largest degree. The optimized design is carried out by experienced engineers to offer different joints according to different site conditions. It can be installed on ground screws or concrete foundations, and achieves variable inclination and height and makes plant design flexible.

  • Material:

    AL6005-T5 (Anodized)
  • Foundation Type:

    Deiven Pile,Ground Screw or Concrete
  • Wind Load:

    ≤ 60 m/s,Per Local codes
  • Snow Load:

    2.4KN/M²,Per Local codes
  • Module Type:

    Compatible with all modules
  • Service life:

    ≥ 25 Years
  • Warranty:

    12 Years
Inquiry now
Product Detail








Overview

Aluminum ground solar mounting system is a highly anti-corrosive and most aesthetic structure for ground mount installation. The AL6005-T5 supporting footing is delivered with pre-assembled design of the highest level in factory and simplifies construction site work to the largest degree. The optimized design is carried out by experienced engineers to offer different joints according to different site conditions. It can be installed on ground screws or concrete foundations, and achieves variable inclination and height and makes plant design flexible.






Advantages

  • High salt fog or high corrosion areas
  • Light weight, easy installation
  • Highly pre-assembled design before shipment makes installation time-saving
  • Corrosion resistant and light-weight ensured by aluminum structure
  • Wide range of rails and joints for different site conditions

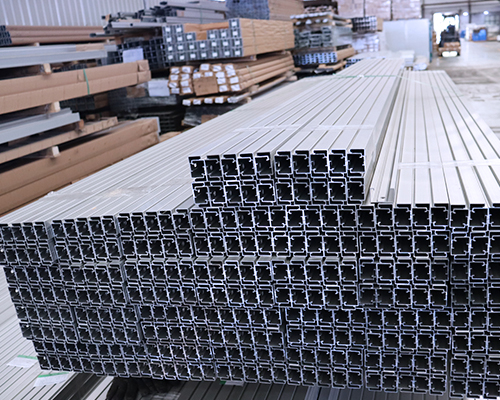

Rail

Anodized AL6005-T5

Mid Clamp Kit

Anodized AL6005-T5

End Clamp Kit

Anodized AL6005-T5

H-Connector

Anodized AL6005-T5

Base

Anodized AL6005-T5

Rail Clamp

Anodized AL6005-T5

L-Shaped Rail

Anodized AL6005-T5




Technical Parameter





Material
Anodized AL6005-T5



Design Standard
JIS C8955 2011, AS/NZS 1170.0, IEC62817, etc
Foundation Type
Driven Pile, Ground Screw or Concrete
Module Type
Compatible with all modules
Wind Load
≤60m/s, Per Local Codes
Snow Load
2.4KN/m2, Per Local Codes
Service Life
≥25 years
Warranty
12 years

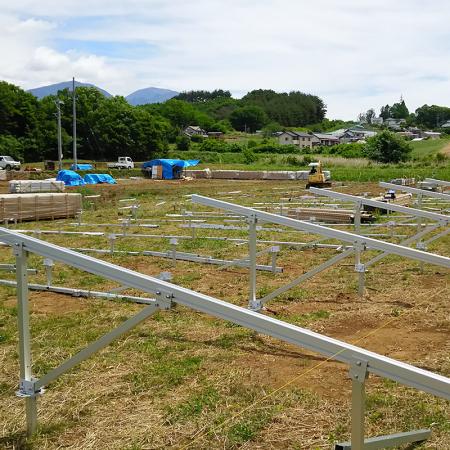

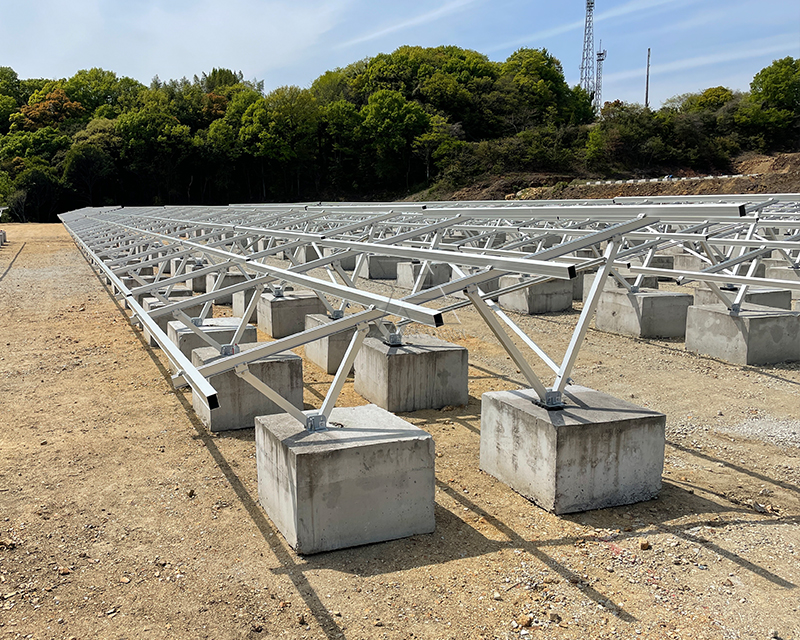

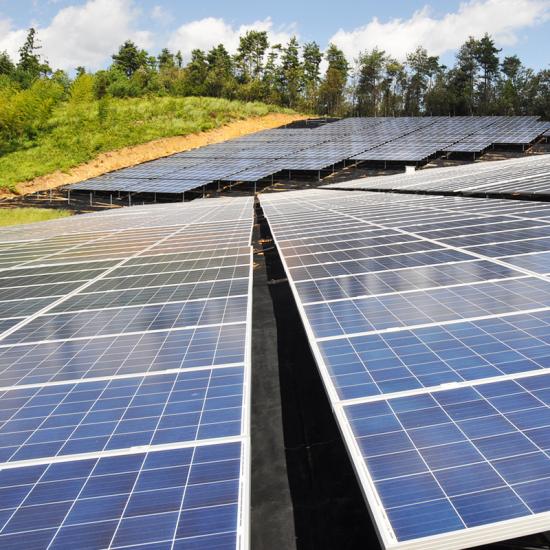

Project Case

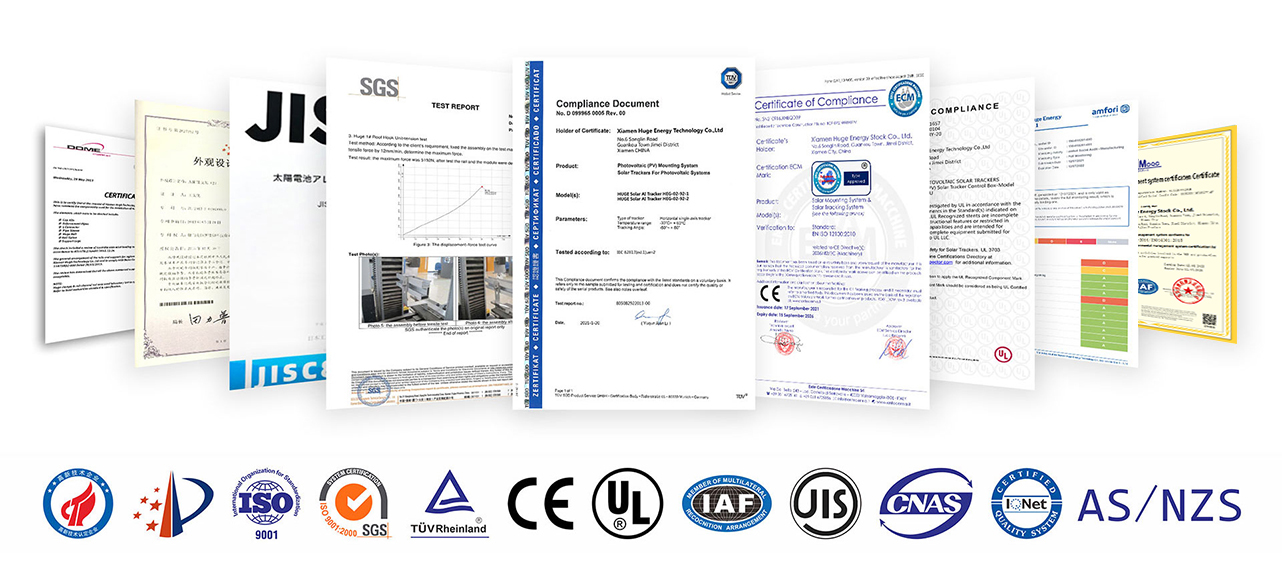

Our Certificates



Huge Energy has obtained 48+ patents

certificates including CE, TUV, UL, SGS, etc., and has passed ISO9001, ISO45001, ISO14001  and 30+ other quality management system certification.






AAA Enterprise Credit Evaluation
National High Tech Enterprise
High-quality Solar Mount Enterprises
Fujian Science and Technology Giant




Xiamen Specialized Small and Micro Enterprises
Xiamen Technology Giant
Leading Enterprise of Xiamen Science and Technology Giant
New Energy Innovative Enterprise


100% Owned Factories 8+



Production facilities for carbon steel, aluminum solar structure, float system, solar ground screw, etc.











Exhibition Show



The company actively participates in professional exhibitions at home and abroad

to strengthen the development of merchant resources,According to the market demand for technology research

and development and upgrade, expand the product market.





Team Activities



After decades of research and development, we have strong production strength and
long-term cooperation strategic partners, reliable quality, easy to use,easy to maintain, these advantages are our

long-term accumulation,join us and get better products.




14YRS+
10.8GW+
100,000M2
1500+
Corporate History Global Installation Production Base Number of Teams



A Free Consultation

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
