MAG 400W Foldable Solar Charger ( Integrated Structural Design )
加载中...

MAG 400W Foldable Solar Charger ( Integrated Structural Design )

400W Portable Solar Panel for Power Station, 36V Foldable Solar Charger with Mc4/Anderson/XT60 Cable Outputs, 23% High Efficiency IP65 Waterproof 2 Kickstands for Outdoor Camping RV Trip.

  • Product:

    MAG Foldable Solar Charger
Inquiry now
Product Detail

MAG Foldable Solar Charger

The Foldable Solar Charging Pack uses high-efficiency solar cells to quickly convert sunlight into electricity. With a foldable and lightweight design, it is easy to carry and store. It is suitable for outdoor camping, travel, and emergency power supply, providing reliable charging for mobile phones, tablets, power banks, and other devices.



Versatile Output and Wide Compatibility

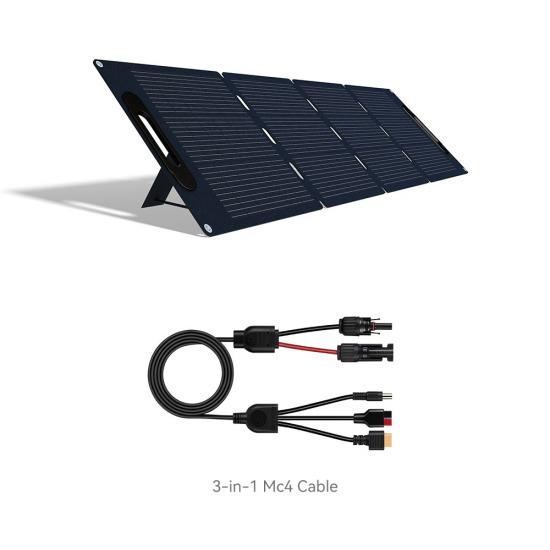

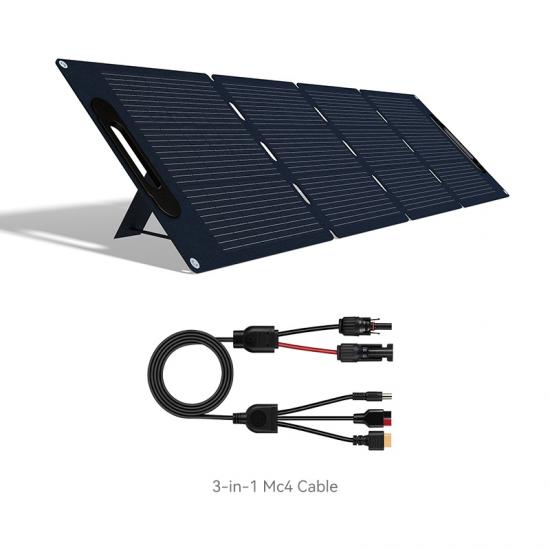

This solar panels comes with a DC5521 output cable and can directly connect to the included 3-in-1 interface cable (Mc4/Anderson/XT60). It is compatible with 98% of solar generators/portable power stations on the market (including brands like Mag solar, Jackery, Ecoflow, Bluetti, Paxcess, Suaoki, Flashfish, etc.).



Premium Material, 23% Impressive Conversion Efficiency

Crafted with high-efficiency monocrystalline silicon cells, the MAG 400W portable solar panel achieves a remarkable energy conversion rate of up to 23%. It efficiently captures solar energy even in low-light conditions, enabling rapid charging for a wide range of devices. Its charging performance significantly surpasses that of conventional solar panels.

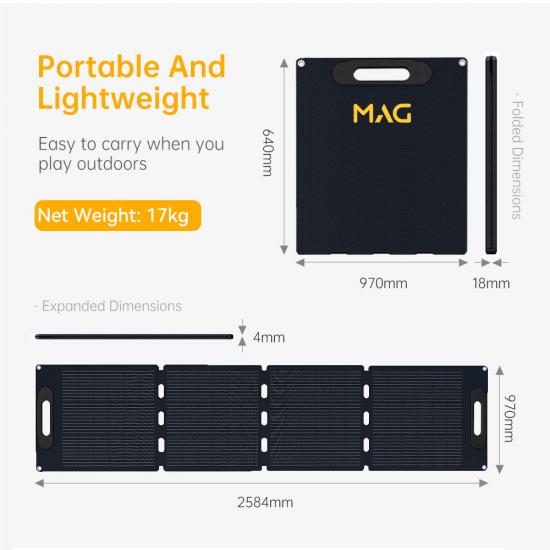

Lightweight and Foldable

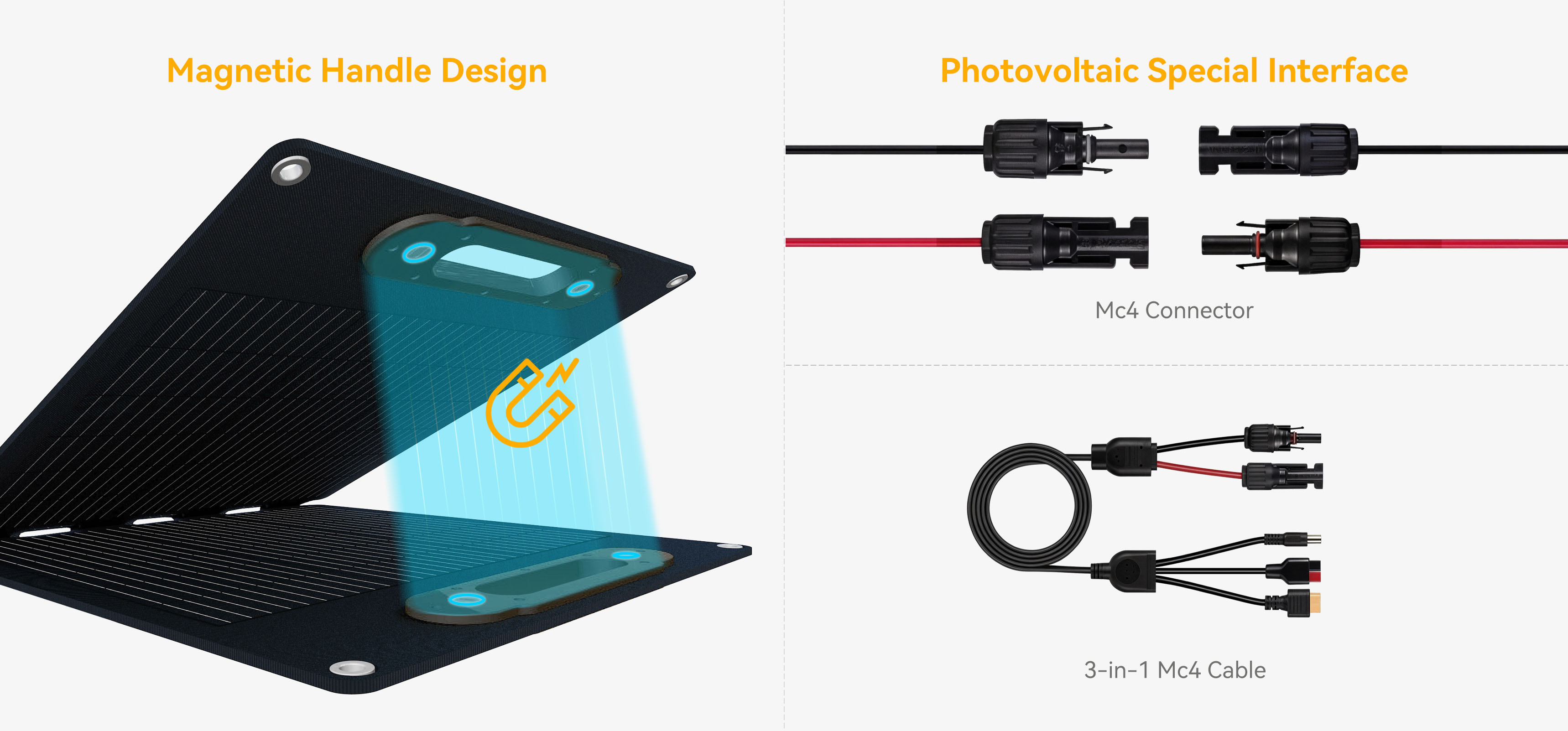

It features a magnetic handle for easy portability and storage, two adjustable kickstands for stable ground placement, and reinforced hanging holes for additional mounting options. It's perfectly suited for RV travel, camping, and emergency power needs.


IP65 Waterproof

Made with high-quality coated materials, it features splash resistance, dust resistance, and durability, capable of withstanding harsh weather. Additionally, the external design includes a storage pouch for accessories and the USB power box, ensuring peace of mind during outdoor activities even if a sudden rain occurs. ( Note: The USB power box and power interfaces are not waterproof and must not be immersed in water. )





Technical Specification


Product Name
200W Foldable Solar Charger
Operating Temperature
−10°C to +65°C
Model
MAG-Z-200A2( Integrated Structural Design ) USB Output
5–12V / 2A, Max.18W
Battery Efficiency
Up to 23%
Type-C Output
Max 60W
Solar Cell Lamination
ETFE
DC Output
Mc4  / DC5521 / Anderson / XT60:20.8V
Peak Power (Wp)
100W
Expanded Dimensions
2150*600*4 mm
Open Circuit Voltage (Voc)
24.4V
Folded Dimensions
585*600*18 mm
Short Circuit Current (Isc)
10.2A
Gross Weight
7 kg
Max. Power Voltage (Vmp)
20.8V
Certification
CE, FCC, RoHS, PSE
Max. Power Current (Imp)
9.66A
Notes
Do not bend, press forcefully, step on, or drop the product
